Supermicro WIO SuperServer 522B-WR

The 2U Supermicro WIO SuperServer 522B-WR can be equipped with a single Intel Xeon 6 processor. Intel Xeon 6700 or 6500 series processors with P-cores or 6700 series processor featuring E-Cores are supports. Offering a PCIe 5.0 x16 CPU and GPU interconnect, it can support either one double-width or two single-width GPUs. A CPU with a TDP of up to 350W with air cooling is supported. Additionally, it can accommodate up to 2TB of memory when all 8x DIMM slots are filled with 128GB DDR5 modules.
Configure

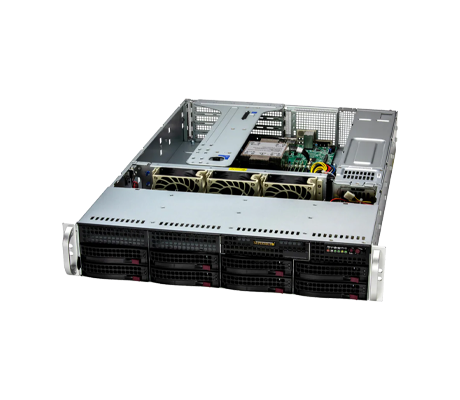

Supermicro WIO SuperServer 522B-WR side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro WIO SuperServer 522B-WR - System Overview

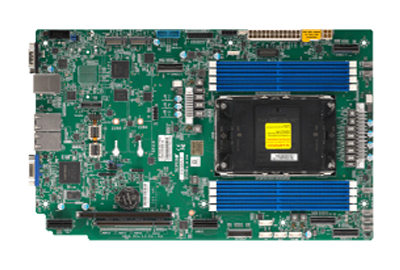

Supermicro WIO SuperServer 522B-WR motherboard

The Supermicro SuperServer 522B-WR is designed as an entry-level solution for small office or home office (SOHO) and SMB environments, serving as an entry GPU server and a general-purpose computing system. This 2U platform features a tool-less, top-loading riser that accommodates 5x PCIe 5.0 expansion slots: 1x PCIe 5.0 x16 FHFL double-width slot, 2x PCIe 5.0 x8 (in x16) FHFL slots, and 2x PCIe 5.0 x8 LP slots. For additional storage or to boot the OS, it includes 2x M.2 PCIe 5.0 x2 NVMe slots for 2280 or 22110 form factor drives.

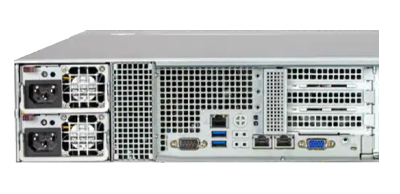

Supermicro WIO SuperServer 522B-WR rear

The front of the Supermicro SuperServer 522B-WR supports SATA3 drives natively in 8x hot-swap 3.5” drive bays with an option for 4x PCIe 5.0 NVMe drives or up to 8x SAS3 drives. Note that an additional storage controller and cables may be necessary to enable NVMe and SAS support. You’ll find dual 1000W redundant Titanium-level power supplies adjacent to the I/O ports on the rear. Administrators have access to a serial port, a VGA port, a dedicated BMC LAN port, 2x USB 3.2 Gen1 ports, and 2x RJ45 1GbE LAN ports. For system management, users can deploy one of Supermicro's software utilities, including SuperCloud Composer, Supermicro Server Manager, or SuperServer Automation Assistant.

*This server is only sold complete and requires a minimum of 1x CPU, 1x DIMM, and 1x storage device (HDD, HDS, or M.2).

Available Configurations

Explore available configurations for the Supermicro WIO SuperServer 522B-WR. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Supermicro WIO SuperServer 522B-WR - Specifications

Processor - 1 Socket

  • Intel Xeon 6 6700/6500 series processors with P-cores
  • Intel Xeon 6 6700 series processors with E-cores

  • P-cores: Up to 86C/172T; Up to 336MB Cache
  • E-cores: Up to 144C/144T; Up to 108MB Cache
  • Supports up to 350W TDP CPUs (Air Cooled)

    • Socket:

  • Single Socket E2 (LGA-4710)

Motherboard

  • Super X14SBW-F

GPU

    Max GPU Count:

  • Up to 1x double-width or 2x single-width GPUs

    • Supported GPU:

  • NVIDIA PCIe: RTX 5000 Ada, A1000, RTX 4000 Ada Generation

    • CPU-GPU Interconnect:

  • PCIe 5.0 x16 CPU-to-GPU Interconnect

Memory

    Memory Slots:

  • 8x DDR5 DIMM slots

    • Memory Capacity:

  • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM

Drive Bays

    Default: Total 8 bays

  • 8x front hot-swap 3.5" SAS*/SATA drive bays

    • Option A: Total 8 Bays

  • 4x front hot-swap 2.5" PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays
  • 4x front hot-swap 3.5"/2.5" SAS*/SATA drive bays

    • *NVMe/SAS support may require additional storage controller and/or cables

    M.2:

  • 2x M.2 PCIe 5.0 x2 NVMe slots (M-key 22110/2280; VROC required for RAID)

    • Peripheral Bays:

  • 1x slim peripheral bay

Expansion Slots

    Default

  • 1x PCIe 5.0 x16 FHFL double-width slots
  • 1x PCIe 5.0 x16 FHFL slot
  • 2x PCIe 5.0 x8 LP slots

    • Option A*

  • 1x PCIe 5.0 x16 FHFL double-width slots
  • 2x PCIe 5.0 x8 (in x16) FHFL slot
  • 2x PCIe 5.0 x8 LP slots

    • *Requires additional parts

On-Board Devices

    SATA:

  • SATA (6Gbps)

    • NVMe:

  • NVMe; RAID 0/1/5/10 support(VROC RAID key required)

    • Chipset:

  • System on Chip

    • Network Connectivity:

  • 2x RJ45 1GbE with Intel I210

Input/Output

    LAN:

  • 2x RJ45 1 GbE LAN ports
  • 1x RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)

    • USB:

  • 2x USB 3.2 Gen1 Type-A port(s) (Rear)
  • 2x USB 3.2 Gen1 ports (header)

    • Video:

  • 1x VGA port(s) (Rear)

    • Serial:

  • 1x COM port (rear)
  • 1x COM port (header)

    • TPM:

  • 1x TPM header

System BIOS

    BIOS Type:

  • AMI 64MB SPI Flash EEPROM

Fans

  • 3x heavy duty PWM 80x80x38mm fans
  • 1x CPU air shroud

Power Supply

  • 2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies

Chassis

    Enclosure:

    Height: 3.5" (89 mm)

    Width: 17.2" (436.88mm)

    Depth: 25.5" (647 mm)

    Gross Weight: 59 lbs (26.76 kg)

    Net Weight: 34 lbs (15.42 kg)

Supermicro WIO SuperServer 522B-WR - Documentation

Supermicro WIO SuperServer 522B-WR Data Sheet Supermicro WIO SuperServer 522B-WR User Manual Supermicro WIO SuperServer 522B-WR Quick Reference Guide
