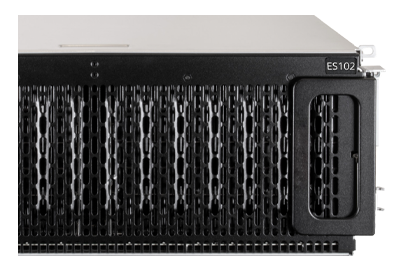

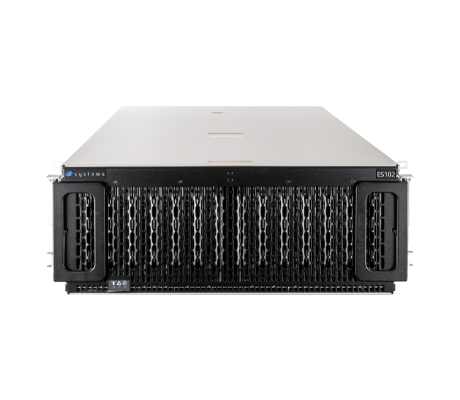

At 4U, IX System’s TrueNAS ES102 Expansion Shelf offers the most storage of any of the expansion shelves at 102 top-loading storage bays. It features dual, redundant, hot-swap SAS3 controllers. Each controller is outfitted with 6x Mini-SAS HD host connections.
IX Systems TrueNAS ES102 Expansion Shelf - System Overview
Additional Information
Supported drive types included enterprise-grade Nearline SAS3 7200 RPM drives and SAS3 solid-state drives. Self-encrypting drives are also supported. Dual redundant PSUs on the TrueNAS ES102 Expansion Shelf ensure high reliability. The system is compatible with a number of different TrueNAS Series appliances. Depending on the specific TrueNAS Series, 1x to 12x expansion Selves can be attached providing Petabytes of raw storage. With several Expansion Shelves to choose from storage capacity can be expanded on an as-needed basis without disruption or downtime.
An intuitive web-based enclosure management system enables administrators to rapidly manage and distribute storage assets. A full range of storage protocols are supported on the system including Windows, Apple, Unix, and mobile devices.
IX Systems TrueNAS ES102 Expansion Shelf - Specifications
Max Capacity
TrueNAS H10
Not Supported
TrueNAS H20
2.5PB (1 shelf)
TrueNAS M30
Not Supported
TrueNAS M40
5PB (2 shelves)
TrueNAS M50
15PB (8 shelves)
TrueNAS M60
25PB (12 shelves)
Drive Bays
Top Loading/Hot-Swap:
4U: 102 x 3.5" Drive Bays
Available Storage Media
Enterprise Nearline Hard Drives (7200 RPM SAS3 - 12Gb/s)
Capacities available from 4 TB to 22 TB
Self-Encrypting Drives (SED) Available
Enterprise Solid State Drives (SAS3 - 12 Gb/s)
Capacities available from 1.92 TB to 7.68 TB
Self-Encrypting Drives (SED) Available
Controllers

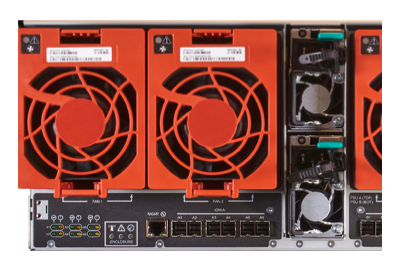

Redundant, hot-swap SAS3 (12Gb/s) controllers
6x Mini-SAS HD Host Connections per Controller (SFF8644)
