IX Systems TrueNAS ES24 Expansion Shelf

Expansion shelves are designed to expand the capacity of various TrueNAS high-availability systems with different JBOD options on an as-needed basis. The 4U TrueNAS ES24 Expansion Shelf can be added to increase storage capacity by hundreds of Terabytes or up to several Petabytes, depending on the attached system and the number of shelves that can be added. It offers dual controllers with 24x front-loading, 3.5-inch hot-swap drive bays.

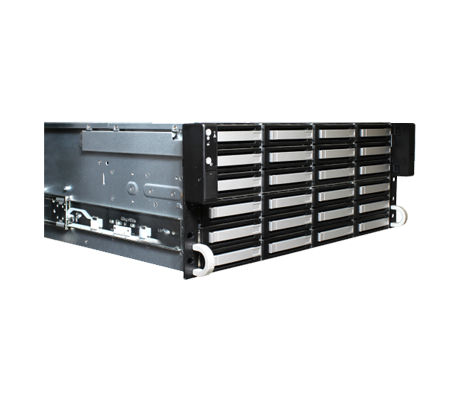

TrueNAS ES24 Expansion Shelf side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

IX Systems TrueNAS ES24 Expansion Shelf - System Overview

Additional Information

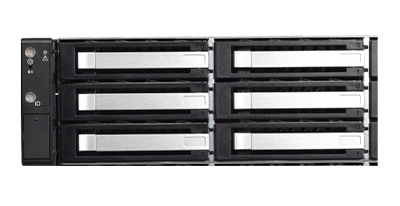

IX Systems TrueNAS ES24 Expansion Shelf front drives

Supported drives include only qualified drives and SSDs. Dual redundant, hot-swap SAS3 controllers offer data transfer rates of 12Gb/s/. There are also three Mini-SAS host connection per controller on the IX Systems TrueNAS ES24 Expansion Shelf. Power draw for this system using the hot swap 800W PSUs is listed at 231W when idle, or up to 288W maximum power draw under load.

IX Systems TrueNAS ES24 Expansion Shelf rear ports

Depending on the supported TrueNAS Series appliance, 1x to 12x expansion enclosures can be attached. With standard deduplication and compression software, raw storage capacity can be nearly tripled. Additional enclosures can be added without disruption or downtime allowing you to expand your storage as needed. TrueNAS software will generate alerts in the event of an error.

IX Systems TrueNAS ES24 Expansion Shelf - Specifications

Max Capacity

    TrueNAS H10

  • 500TB (1 shelf)

    • TrueNAS H20

  • 500TB (1 shelf)

    • TrueNAS M30

  • 1PB (2 shelves)

    • TrueNAS M40

  • 1PB (2 shelves)

    • TrueNAS M50

  • 4PB (8 shelves)

    • TrueNAS M60

  • 5PB (12 shelves)

Drive Bays

    Front Loading/Hot-Swap:
    • 24 x 3.5"/2.5" Drive Bays

Available Storage Media

    Enterprise Nearline Hard Drives (7200 RPM SAS3 - 12Gb/s)

  • Capacities available from 4 TB to 22 TB
  • Self-Encrypting Drives (SED) Available

    • Enterprise Solid State Drives (SAS3 - 12 Gb/s)

  • Capacities available from 1.92 TB to 7.68 TB
  • Self-Encrypting Drives (SED) Available

Controllers

  • Redundant, hot-swap SAS3 (12Gb/s) controllers
  • 3x Mini-SAS HD Host Connections per Controller (SFF8644)

Chassis

    4U Enclosure

    Length: 20.5" (521mm)

    Width: 19" (483mm)

    Height: 7" (178mm)

    Empty Weight: 40lbs (18kg)

    Fully-Loaded Weight: 76lbs (34.5kg)

Power

    Idle Power Draw: 231W

    Max Power Draw: 288W

Power Management

  • Redundant, hot-swappable, high-efficiency (90%+) power supplies
  • 100-240V 50/60Hz input power on TrueNAS ES24/ES24F(Auto-Switching)
  • UPS signal response and alerts
  • Redundant cooling
  • All expansion shelves are RoHS 6/6 compliant

IX Systems TrueNAS ES24 Expansion Shelf - Documentation

TrueNAS ES24 Expansion Shelf Data Sheet TrueNAS ES24 Expansion Shelf Basic Setup Guide TrueNAS Expansion Shelf Connection Guide
