IX Systems TrueNAS ES24F Expansion Shelf

Designed for scale out expansion with combined with one of TrueNAS F-Series, H-Series, M-Series or R-Series enterprise storage appliances, the TrueNAS ES24F Expansion Shelf provides 24x 2.5-inch storage bays. It offers dual controllers, and SAS3 connectors for 12Gb/s throughput. This expansion shelf allows Administrators to easily add more storage to the network without disruption.

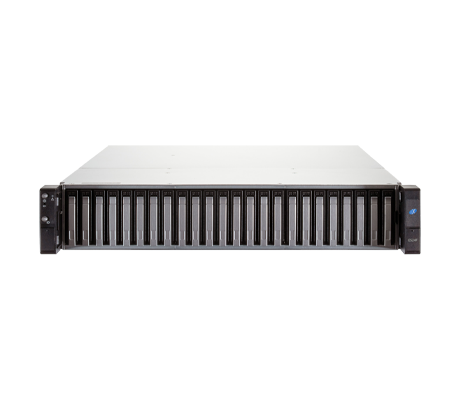

TrueNAS ES24F Expansion Shelf front view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

IX Systems TrueNAS ES24F Expansion Shelf - System Overview

Additional Information

IX Systems TrueNAS ES24F Expansion Shelf front view

The number of supported ES24F Expansion shelves that can be attached depends on the TrueNAS system it will be attached to. Top of the line M60 appliance can attach up to 12x expansion shelves, while the TrueNAS H10 can only support a single expansion shelf. SAS expanders in the controllers on a TrueNAS system connect to the expansion shelf controller. TrueNAS systems with just a single controller do not offer high-availability (HA) but can be modified with the addition of another controller for HA.

IX Systems TrueNAS ES24F Expansion Shelf rear view

Wide porting by connecting a TrueNAS systems 2x SAS ports to the 2x SAS connection to a single Expansion Shelf will double the bandwidth between the TrueNAS system and connected Expansion Shelf. If another Expansion Shelf is added later, then one of the connections from the TrueNAS system can be routed to the other Expansion Shelf.

IX Systems TrueNAS ES24F Expansion Shelf - Specifications

Max Capacity

    TrueNAS H10

  • 500TB (1 shelf)

    • TrueNAS H20

  • 500TB (1 shelf)

    • TrueNAS M30

  • 1PB (2 shelves)

    • TrueNAS M40

  • 1PB (2 shelves)

    • TrueNAS M50

  • 4PB (8 shelves)

    • TrueNAS M60

  • 5PB (12 shelves)

Drive Bays

    Front Loading/Hot-Swap:
    • 24 x 2.5" SAS/SATA Drive Bays

Available Storage Media

    Enterprise Nearline Hard Drives (7200 RPM SAS3 - 12Gb/s)

  • Capacities available from 4 TB to 22 TB
  • Self-Encrypting Drives (SED) Available

    • Enterprise Solid State Drives (SAS3 - 12 Gb/s)

  • Capacities available from 1.92 TB to 7.68 TB
  • Self-Encrypting Drives (SED) Available

Controllers

  • Redundant, hot-swap SAS3 (12Gb/s) controllers
  • 3x Mini-SAS HD Host Connections per Controller (SFF8644)

Chassis

    2U Enclosure

    Length: 21.5" (546mm)

    Width: 19" (483mm)

    Height: 3.5" (89mm)

    Empty Weight: 34.1lbs (15.5kg)

    Fully-Loaded Weight: 43.4lbs (19.7kg)

Power

    Idle Power Draw: 231W

    Max Power Draw: 288W

Power Management

  • Redundant, hot-swappable, high-efficiency (90%+) power supplies
  • 100-240V 50/60Hz input power on TrueNAS ES24/ES24F(Auto-Switching)
  • UPS signal response and alerts
  • Redundant cooling
  • All expansion shelves are RoHS 6/6 compliant
