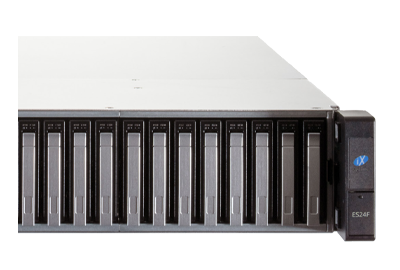

Designed for scale out expansion with combined with one of TrueNAS F-Series, H-Series, M-Series or R-Series enterprise storage appliances, the TrueNAS ES24F Expansion Shelf provides 24x 2.5-inch storage bays. It offers dual controllers, and SAS3 connectors for 12Gb/s throughput. This expansion shelf allows Administrators to easily add more storage to the network without disruption.
IX Systems TrueNAS ES24F Expansion Shelf - System Overview
Additional Information
The number of supported ES24F Expansion shelves that can be attached depends on the TrueNAS system it will be attached to. Top of the line M60 appliance can attach up to 12x expansion shelves, while the TrueNAS H10 can only support a single expansion shelf. SAS expanders in the controllers on a TrueNAS system connect to the expansion shelf controller. TrueNAS systems with just a single controller do not offer high-availability (HA) but can be modified with the addition of another controller for HA.
Wide porting by connecting a TrueNAS systems 2x SAS ports to the 2x SAS connection to a single Expansion Shelf will double the bandwidth between the TrueNAS system and connected Expansion Shelf. If another Expansion Shelf is added later, then one of the connections from the TrueNAS system can be routed to the other Expansion Shelf.
IX Systems TrueNAS ES24F Expansion Shelf - Specifications
Max Capacity
TrueNAS H10
500TB (1 shelf)
TrueNAS H20
500TB (1 shelf)
TrueNAS M30
1PB (2 shelves)
TrueNAS M40
1PB (2 shelves)
TrueNAS M50
4PB (8 shelves)
TrueNAS M60
5PB (12 shelves)
Drive Bays
Front Loading/Hot-Swap:
24 x 2.5" SAS/SATA Drive Bays
Available Storage Media
Enterprise Nearline Hard Drives (7200 RPM SAS3 - 12Gb/s)
Capacities available from 4 TB to 22 TB
Self-Encrypting Drives (SED) Available
Enterprise Solid State Drives (SAS3 - 12 Gb/s)
Capacities available from 1.92 TB to 7.68 TB
Self-Encrypting Drives (SED) Available
Controllers

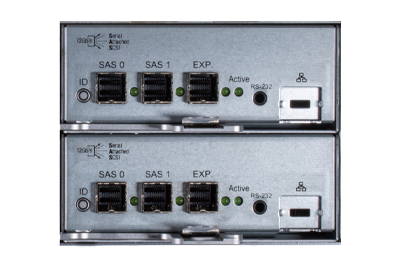

Redundant, hot-swap SAS3 (12Gb/s) controllers
3x Mini-SAS HD Host Connections per Controller (SFF8644)
