IX Systems TrueNAS ES60 Expansion Shelf

Offering JBOD capacity when paired with a TrueNAS Series appliance, the TrueNAS ES60 Expansion Shelf has 60x 3.5-inch top-loading drive bays compatible with the 2.5-inch form factor. This system allows you to seamlessly, and without disruption, increase storage capacity to your network with terabytes of data that can convert to petabytes of storage using standard compression and deduplication protocols.

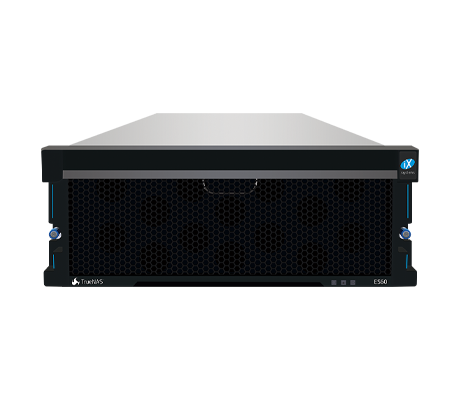

TrueNAS ES60 Expansion Shelf front panel view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

IX Systems TrueNAS ES60 Expansion Shelf - System Overview

Additional Information

IX Systems TrueNAS ES60 Expansion Shelf front LEDs IX Systems TrueNAS ES60 Expansion Shelf rear ports

The TrueNAS ES60 Expansion Shelf supports a number of storage protocols including Windows, Apple, Unix, and mobile devices. Supported storage media includes Enterprise Nearline SAS3 hard drives and Enterprise Solid State Drives offering data rates of 12Gb/s with a capacity of 4TB to 22TB. Self-encrypting drives can also be installed. Power is provided by dual redundant 90% efficient, hot-swappable drives.

Dual hot-swap SAS3 controllers feature 12Gb/s access speeds plus 2x mini-SAS HD host connections per controller. Total capacity of storage depends on the TrueNAS series appliance this expansion shelf is attached to.

IX Systems TrueNAS ES60 Expansion Shelf - Specifications

Max Capacity

    TrueNAS H10

  • 1PB (1 shelf)

    • TrueNAS H20

  • 1PB (1 shelf)

    • TrueNAS M30

  • 1PB (2 shelves)

    • TrueNAS M40

  • 3PB (2 shelves)

    • TrueNAS M50

  • 10PB (8 shelves)

    • TrueNAS M60

  • 15PB (12 shelves)

Drive Bays

    Top Loading/Hot-Swap:
    • 4U: 60 x 3.5"/2.5" Drive Bays

Available Storage Media

    Enterprise Nearline Hard Drives (7200 RPM SAS3 - 12Gb/s)

  • Capacities available from 4 TB to 22 TB
  • Self-Encrypting Drives (SED) Available

    • Enterprise Solid State Drives (SAS3 - 12 Gb/s)

  • Capacities available from 1.92 TB to 7.68 TB
  • Self-Encrypting Drives (SED) Available

Controllers

  • Redundant, hot-swap SAS3 (12Gb/s) controllers
  • 2x Mini-SAS HD Host Connections per Controller (SFF8644)

Chassis

    4U Enclosure

    Length: 33.38" (848mm)

    Width: 19" (483mm)

    Height: 6.9" (176mm)

    Empty Weight: 85lbs (38.5kg)

    Fully-Loaded Weight: 175lbs (80kg)

Power

    Idle Power Draw: 479W

    Max Power Draw: 821W

Power Management

  • Redundant, hot-swappable, high-efficiency (90%+) power supplies
  • High-line (200-240V 50/60HZ) input power only on TrueNAS ES60/ES102
  • UPS signal response and alerts
  • Redundant cooling
  • All expansion shelves are RoHS 6/6 compliant

IX Systems TrueNAS ES60 Expansion Shelf - Documentation

TrueNAS ES60 Expansion Shelf Data Sheet TrueNAS ES60 Expansion Shelf User Manual TrueNAS ES60 Expansion Shelf Basic Setup Guide TrueNAS Expansion Shelf Connection Guide
