IX Systems TrueNAS H10 Storage - System Overview
Additional Information

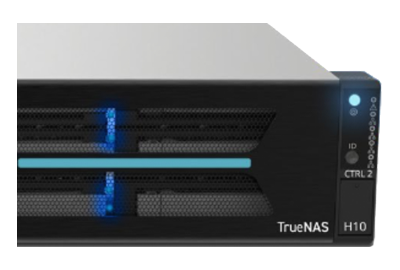

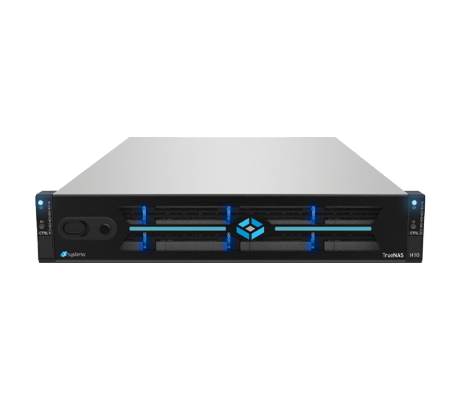

Although the 2U TrueNAS H10 Storage is compact, it has built-in support for file, block, and S3-compliant object storage protocols, all hosted in the same array. Offering five 9s reliability, this appliance delivers a hybrid storage capacity of 1.5PB with an effective capacity of up to 3PB. With an all-flash storage configuration, it can hold up to 1.1PB with a maximum effective capacity of 2.2PB. Maximum effective capacities are achieved using typical data reduction through compression and deduplication. The H10 model is equipped with 64GB to 128GB of RAM per controller, plus supports up to 72 drives with the addition of 1x ES60 expansion shelf, delivering a maximum throughput of up to 2 GByte/s. Other expansion shelves are supported including the ES24 and ES24F with all flash storage.
Supported Expansion Shelves
TrueNAS ES24
- 4U. 24x 3.5-inch bays. 2x SAS3 12Gb/s controllers, 500TB with one shelf with H10.
TrueNAS ES24F
- 2U. 24x 2.5-inch Bays. 2x SAS3 12Gb/s controllers, 500TB with one shelf with H10.
TrueNAS ES60
- 4U. 60x 3.5-inch Bays. 2x SAS3 12Gb/s controllers, 1PB with one shelf with H10.

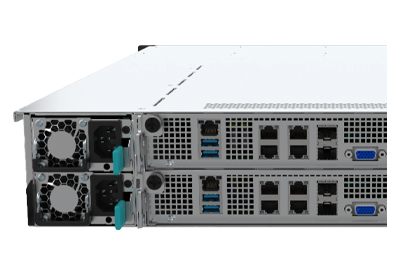

4x 1G Base-T networking ports can be upgraded to 4x 10/25 GbE (SFP28) ports. On the back of the H10, there are dual redundant, hot-swappable 80 Plus Platinum (90%) power supplies with an average power draw of 200W and a peak power draw of 250W. Administrators can use the IPMI Out-of-Band port, a WebUI port, or TrueCommand Management to control the system’s components, collect predictive analytics, and get real-time data both at-chassis or remotely on a single system or multiple TrueNAS systems.
