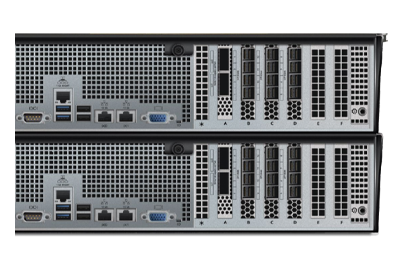

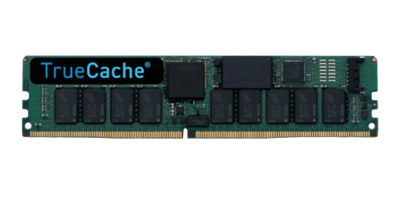

Offering and easily expandable storage system, the IX Systems TrueNAS M50 Storage appliance can support up to 504 drives. It features a single controller with the option for dual redundant controllers. Each controller supports 256GB – 192GB of DRAM plus 16GB TrueCache NVDIMMs to help preserve data. The system comes standard with 2x 10GBase-T network interface controllers but using the PCIe slots in each controller, can be outfitted with optional 10/25/40/100GbE.

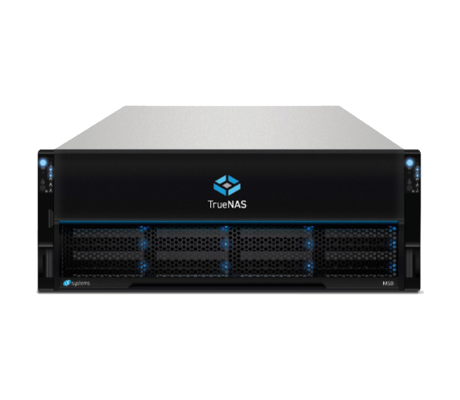

IX Systems TrueNAS M50 Storage - System Overview
Additional Information
The system offers either an all-flash storage option or hybrid storage, which includes HDD storage devices paired with Flash for the best of both worlds. There are 4x different Expansion Shelves compatible with the IX Systems TrueNAS M50 Storage enclosure. For scale-out, the M50 can support up to 8x additional Expansion Shelves depending on your storage needs. For scale-up using TrueNAS SCALE software, in addition to TrueNAS Enterprise CORE, up to 100 systems can be clustered together. The unit has a base configuration of up to 500TB of storage.
Supported Expansion Shelves
TrueNAS ES24
4U. 24x 3.5-inch bays. 2x SAS3 12Gb/s controllers, 5PB with 12x shelves with M50.
2U. 24x 2.5-inch Bays. 2x SAS3 12Gb/s controllers, 5PB with 12x shelves with M50.
4U. 60x 3.5-inch Bays. 2x SAS3 12Gb/s controllers, 15PB with 12x shelves with M50.
4U. 102x 3.5-inch Bays. 2x SAS3 12Gb/s controllers, 25PB with 12x shelves with M50.
Featuring a dedicated management port, the system can be managed out-of-band using TrueNAS Enterprise CORE. This high-availability storage enclosure is also VMware certified. It offers unified file, block, and S3-Compliant object storage. Available at no extra cost, TrueNAS M-series also offer data compression, space-efficient snapshots, clones and provisioning at no extra cost. TrueNAS Adaptive Compression (TAC) ensures highly efficient performance while maximizing storage capacity.
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
