IX Systems TrueNAS M60 Storage

The IX Systems TrueNAS M60 Storage can expand to support over 25PB of storage with up to 12x expansion shelves attached. TrueNAS SCALE provides even greater density enabling up to 100 systems to be clustered together. The base chassis supports 24x 3.5-inch drive bays, and dual redundant controllers. Each controller offers up to 768GB of memory with a 12.8TB read cache, and 2x 16GB NVDIMM write cache.

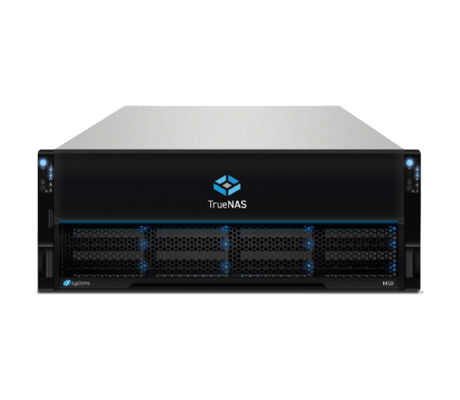

TrueNAS M60 Storage front view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

IX Systems TrueNAS M60 Storage - System Overview

Additional Information

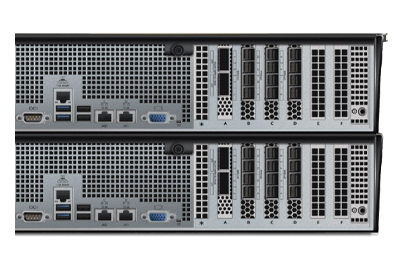

IX Systems TrueNAS M60 Storage rear view

With TrueNAS M-Series appliances, Administrators have storage flexibility with either a hybrid storage configuration combining large capacity SAS3 drives with super-fast NVMe storage. And all flash storage option will provide for less storage at maximum capacity but offers greater speed. IX Systems TrueNAS M60 Storage appliance can be outfitted with Nearline SAS3 hard drives for capacity plus, Enterprise SAS3 SSDs, and NVMe SSDs for speed and performance. This system excels at unified block, file, and object storage. Flexible and adaptable to your changing business needs, optional networking port configurations include up to 4x 10/25/40/100GbE. It comes with 2x 10GBase-T networking ports and a dedicated management port.

Supported Expansion Shelves

TrueNAS ES24

  • 4U. 24x 3.5-inch bays. 2x SAS3 12Gb/s controllers, 4PB with 8x shelves with M60.
TrueNAS ES24F
  • 2U. 24x 2.5-inch Bays. 2x SAS3 12Gb/s controllers, 4PB with 8x shelves with M60.
TrueNAS ES60
  • 4U. 60x 3.5-inch Bays. 2x SAS3 12Gb/s controllers, 10PB with 8x shelves with M60.
TrueNAS ES102
  • 4U. 102x 3.5-inch Bays. 2x SAS3 12Gb/s controllers, 15PB with 8x shelves with M60.

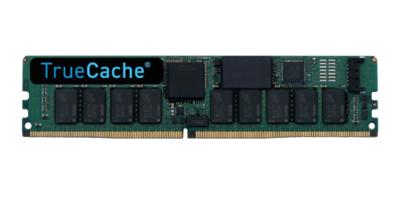

IX Systems TrueNAS M60 Storage TruCache NVDIMM

Managing the system is intuitive with TrueNAS Enterprise, offering a graphical user interface plus high-availability and VMware certification. This system is suited for virtualization, media production, high-speed file sharing and heavy IT storage workloads. Storage Optimization helps to maximize storage efficiency with data reduction rates greater than 2.5x. The M60 provides the largest storage pool with a maximum of up to 1248 drives supported.

IX Systems TrueNAS M60 Storage - Specifications

High Availability

    Dual Controller

Processor (Per Controller)

    Cores:

  • 32 x Physical Cores

    • Threads:

  • 64 x Virtual Threads

RAM

    RAM per Controller:

  • 768 GB

    • Read Cache:

  • Read Cache: 12.8TB NVMe

    • Write Cache:

  • 2x 16GB TrueCache NVDIMM

Drive Bays

    Front Bays/Hot-Swap:
    • 24 x 3.5"/2.5" NVMe HDD, SSD, RI-SSD Drive Bays

    Max Storage

  • 25 PB

Networking

  • Up to 4x 10/25/40/100 GbE (optical)
  • Up to 2x 10GBase-T (standard)

Chassis

    4U Enclosure

    Length: 27" (686mm)

    Width: 19" (483mm)

    Height: 7" (178mm)

    Empty Weight: 75lbs (34kg)

    Fully-Loaded Weight: 114lbs (52kg)

Power

    Single Controller: 1225W

    Dual Controller: 1450W

    Heat Output: 4180/4947 BTU/h

Management

    Software:

  • TrueNAS Scale 23.10
  • Enterprise

    • Input/Output:

  • 2 x 10 GbE Base-T (standard)
  • 1 x Intelligent Platform Management Interface (IPMI) Out-of-Band Management Port
  • 1 x WebUI Port

IX Systems TrueNAS M60 Storage - Documentation

TrueNAS M60 Storage Data Sheet TrueNAS M60 Storage User Manual TrueNAS Open Storage Product Line TrueNAS M60 Unified Storage Array Basic Setup Guide TrueNAS M-Series Unified Storage Array Basic Setup Guide TrueNAS M-Series Expansion Shelves Data Sheet TrueNAS VMware White Paper TrueNAS Large Scale Enterprise Backups White Paper TrueNAS M-Series Unified Flash Storage Data Sheet TrueNAS M-Series Out-of-Band Management TrueNAS M-Series HA Networking
