IX Systems TrueNAS Mini X+ Storage

At its core, the TrueNAS Mini X+ Storage offers an 8-core Intel Atom C3758 processor. As a Network Attached Storage (NAS) system, it supports a variety of applications including file sharing, backup, personal cloud, video surveillance, and other SMB needs. The 13.5L storage appliance features a total of 7x hot-swap bays with 5x 3.5” and 2x 2.5” SSD bays securely housed behind a locking door. This compact reliable system is designed to run quietly in any home or office setting.

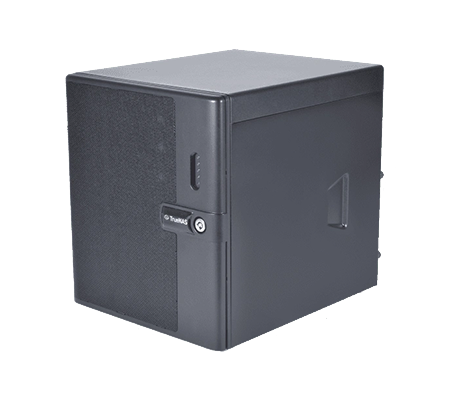

TrueNAS Mini X+ Storage front view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

IX Systems TrueNAS Mini X+ Storage - System Overview

Additional Information

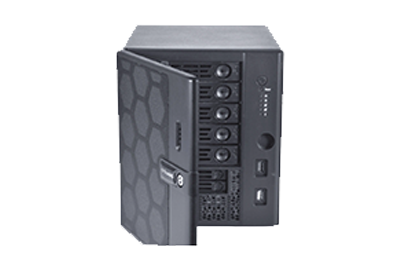

IX Systems TrueNAS Mini X+ Storage front view

Four memory module slots on the system provide up to 32GB of DDR4 ECC memory and can be upgraded to 64GB. The motherboard includes 2x 10Gbase-T RJ45 ports but also offers an upgrade option for a dual 10G SFP+ NIC, which can be installed using the PCIe 3.0 x4 slot. Capable of supporting up to 105TB of raw storage, while consuming only 111W of power, the Mini X+ features 2x 10G Base-T networking ports and 1x dedicated RJ45 IPMI remote management port for remote administration.

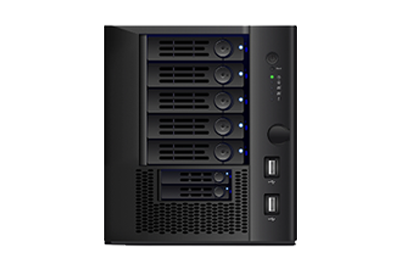

IX Systems TrueNAS Mini X+ Storage front panel

The 13-pound system is equipped with the self-healing ZFS filesystem, ensuring strong data protection. TrueNAS supports a wide range of cloud storage providers for sync, archive or backup, including Amazon, Azure, Google Cloud, BackBlaze, and Dropbox. It also offers data replication between systems and integration with iX-Storj Globally Distributed Storage. A notable feature is its enclosure management, which allows you to monitor drive status through a user-friendly web interface, making it easy to identify any failed drives. Additionally, you can manage file shares, set permissions, and perform maintenance all from a single web browser.

IX Systems TrueNAS Mini X+ Storage - Specifications

Processor

  • Octa-Core
  • C3758 Intel CPU

Memory

  • 32GB DDR4 with ECC
  • Upgradeable to 64GB

Drive Bays

    Front Bays/Hot-Swap:
    • 5x SATA 3.5” Hot-Swappable Drive Bays
    • 2 x SATA 2.5” Hot-Swappable SSD Bays
        • *Optional 3.5" to 2.5" adaptors available

      Max Raw Capacity

    • Up to 105TB

RAID

  • OpenZFS – RAIDZ1 (RAID 5), RAIDZ2 (RAID 6), Multi-Disk Mirror (RAID 10), and RAID0 (stripe)

Disk Management

  • Hot-Swappable Drives, Bad Block Scan + HDD S.M.A.R.T
  • ISO Mounting Support, Hardware-Accelerated Disk Encryption

Network

  • Standard: 2 x RJ45 1/10GBaseT Ethernet LAN ports
  • Dedicated RJ45 IPMI Port (Remote Hardware Management)
  • 2 x SFP+ 10G Add On Card (Optional)

USB Ports

  • 1 x USB 3.0 Port (Front)
  • 1 x USB 2.0 Port (Front)
  • 2 x USB 2.0 Ports (Rear)

Read/Write Cache

  • (Optional) Boost performance by adding a dedicated, high-performance read cache (L2ARC) or by adding a dedicated, high-performance write cache (ZIL/SLOG)

PCIe Expansion

  • 1 x PCI Express 3.0 x 4

Power Supply

    Power Consumption (Maximum)

  • Diskless: 40W
  • With drives & 10G Add-on-card: 111W

    • Power Supply

  • 100V to 240V AC, 50/60 HZ, Single Phase

    • Power Management

  • Remote Power-On/Off (IPMI), UPS Signal Response and Alerts

User Control Interface

  • Web Browser and Remote Hardware Management (IPMI)

Chassis

    Width: 8.25″ (210mm)

    Depth: 10.5″ (267mm)

    Height: 9.5″ (241mm)

    Weight (no drives): 13lbs (5.9Kg)

Management

    Software:

  • TrueNAS Scale
  • TrueNAS Enterprise
  • TrueNAS Core

IX Systems TrueNAS Mini X+ Storage - Documentation

TrueNAS Mini X+ Storage Data Sheet TrueNAS Mini X+ Storage Hardware Upgrades Guide TrueNAS Mini Storage Basic Setup Guide
