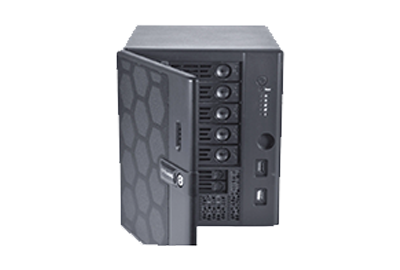

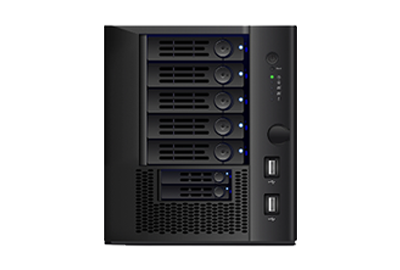

The compact TrueNAS Mini X Storage is a Network Attached Storage (NAS) system ideal for file-sharing, backup, multimedia processing, video surveillance, personal cloud, or other SMB applications. With support for all major file and block protocols, the Mini X is designed to run quietly in any home or office setting. It supports a total of 7x hot-swap bays behind a locking door with 5x 3.5” and 2x 2.5” SSD bays. At the heart of the storage appliance there is a 4-core Intel Atom C3558 processor with a TDP of up to 16W, which supports 16GB to 32GB of DDR4 ECC memory running at 2133MHz.
IX Systems TrueNAS Mini X Storage - System Overview
Additional Information
The 13.5-liter Mini X storage is safeguarded by the self-healing ZFS filesystem. TrueNAS supports all major cloud-based storage providers, such as Amazon, Azure, Google Cloud, BackBlaze, and Dropbox. TrueNAS systems can also replicate data with one another or use iX-Storj Globally Distributed Storage. Another standout feature is its enclosure management, which offers drive status visibility through a web interface, making it simple to identify any failed drives. You can also manage file shares, set permissions, and perform maintenance all from a single web browser. For even more capabilities, TureNAS Core offers a number of free plugins and using TruNAS Scale enables VMs and containers for your private cloud management to shared media.
The Mini X holds a maximum raw storage capacity of up to 90TB and consumes 24W in a diskless enclosure or a maximum of 84W with drives. Optional read or write cache can boost performance. On the back of the system, there are 4x 1G Base-T networking ports and 1x RJ45 IPMI remote management interface. This is a very small unit occupying the space of a lunchbox and weighing in at 13lbs.
IX Systems TrueNAS Mini X Storage - Specifications
Hot-Swappable Drives, Bad Block Scan + HDD S.M.A.R.T
ISO Mounting Support, Hardware-Accelerated Disk Encryption
Network
Standard: 4 x 1 Gigabit Ethernet LAN ports (10/100/1000)
Dedicated RJ45 IPMI Port (Remote Hardware Management)
USB Ports
2 x USB 2.0 Ports (Front)
1 x USB 3.0 Port (Rear)
Read/Write Cache
(Optional) Boost performance by adding a dedicated, high-performance read cache (L2ARC) or by adding a dedicated, high-performance write cache (ZIL/SLOG)
PCIe Expansion
N/A
Power Supply
Power Consumption (Maximum)
Diskless: 24W
With drives: 84W
Power Supply
100V to 240V AC, 50/60 HZ, Single Phase
Power Management
Remote Power-On/Off (IPMI), UPS Signal Response and Alerts
