IX Systems TrueNAS R10 Storage

Delivering enterprise storage at an affordable cost, the TrueNAS R10 Storage system offers one of the world’s most popular open-source storage operating systems. At 1U, this small but powerful system has a single controller with up to 96GB of DRAM and a 6-10 cores CPU. It offers 120TB of all-flash raw storage capacity with 16x 2.5-inch, 7mm SSD storage devices installed!

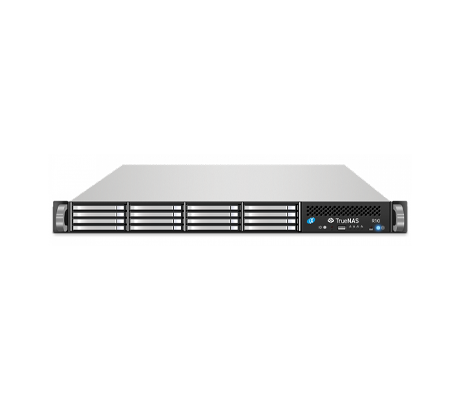

TrueNAS R10 Storage front view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

IX Systems TrueNAS R10 Storage - System Overview

Additional Information

TrueNAS R10 Storage front view

Using standard compression and deduplication data reduction, the IX Systems TrueNAS R10 Storage Appliance has a maximum effective capacity of up to 400TB. Maximum Ethernet speed is provided with dual 100GbE ports. Optional 32Gb fibre channel ports offers a high-speed connection for host systems. With a small chassis at only 1U this system is powered by dual 350W PSUs.

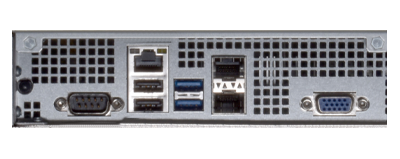

TrueNAS R10 Storage rear view

This system is ideal for block, file, and object storage offering a number of data protection features including snapshots, data protection, data reduction, replication, scrubbing and security. Available in three editions, XI Systems provides CORE, Enterprise, and Scale to manage your storage needs. With only a single controller, the R-Series satisfies the best value in storage for companies on a budget, while still delivering enterprise-grade capabilities.

IX Systems TrueNAS R10 Storage - Specifications

Processor

    Controllers:

  • Single

    • CPU Per Controller:

  • 6-10 cores

Memory

    Capacity:

  • 32GB-96GB

Drive Bays

    2.5" U.2 NVMe:
    • 16x 2.5" 7mm NVMe Bays Total

      • Max Raw Capacity:

    • 120TB

      • Max Effective Capacity:

    • 400TB

Networking

  • 2x 10/25/40/100GbE
  • 2 or 6 x 10GBaseT or SR
  • Fibre Channel (option): 2x 32Gb

Ports

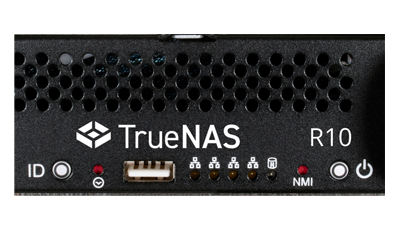

    Front I/O:

  • 1x USB 2.0 port
  • Locate ID Active
  • Reset Button
  • Link Active
  • Disk Activity
  • System On

    • Rear I/O:

  • Dual PSU
  • 1x PCIe Expansion
  • 1x Serial Port
  • 1x OOBM Ethernet
  • 2x USB 2.0
  • 2x USB 3.0
  • 2x SFP+
  • 1x VGA Port

Chassis

    1U Enclosure

    Depth: 27" (686mm)

    Weight: 44lbs (20kg)

Power

  • 350W, 250W

IX Systems TrueNAS R10 Storage - Documentation

TrueNAS R10 Storage Data Sheet TrueNAS R-Series Basic Setup Guide TrueNAS Open Storage Product Line
