IX Systems TrueNAS R50 Storage

The TrueNAS R50 storage appliance is a 4U, top-loading hybrid storage system built for workloads such as media streaming, backup, archive, and virtualization. It features 48x 3.5-inch HDD bays and 4x 2.5-inch hot-swappable NVMe drive bays on the rear, which can be used for caching or additional storage. With 22TB disk drives, the single-controller system delivers over 1PB of raw storage. Adding 2x SAS expansion cards to connect up to 2x JBOD ES102 expansion shelves allows for scaling up to 5PB of raw capacity.

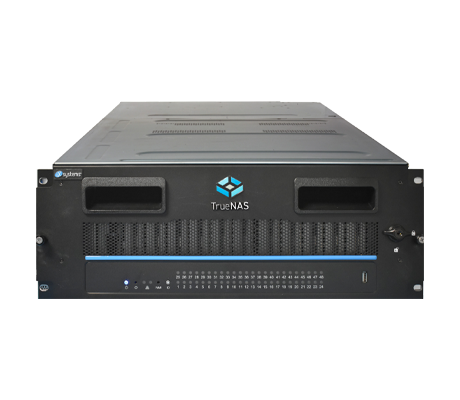

TrueNAS R50 Storage front view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

IX Systems TrueNAS R50 Storage - System Overview

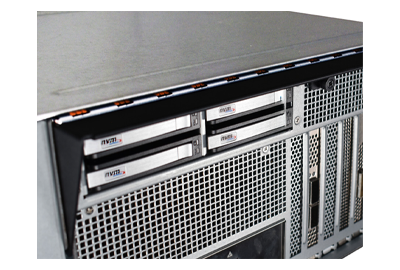

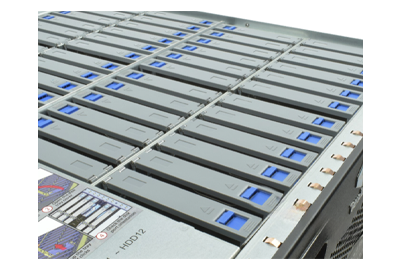

IX Systems TrueNAS R50 Storage drive bays IX Systems TrueNAS R50 Storage rear view

Additional Information

The single controller supports an Intel CPU with up to 16 cores and can be configured with up to 192GB of RAM. Equipped with 2x 100G Ethernet ports the TrueNAS R50 storage system offers 2x optional 32G Fibre Channel ports for enhanced connectivity with host systems. To ensure reliability, the system is powered by dual redundant 1300W PSUs. It supports all 3x TrueNAS software suites—CORE, Enterprise, and SCALE—and provides bronze and silver support options for Enterprise. At full capacity, with two ES102 expansion shelves attached the system can provide up to 10PB of storage using standard data reduction through compression and deduplication. TrueNAS also integrates with a wide range of cloud storage providers, including Amazon, Azure, Google Cloud, BackBlaze, and Dropbox, and supports data replication across all TrueNAS systems.

IX Systems TrueNAS R50 Storage - Specifications

Processor

    CPU per Controller

  • 6-16 cores

Memory

    DRAM per Controller:

  • 64GB-192GB

Drive Bays

  • 48x 3.5"
  • 4x 2.5" (NVMe)
  • SATA/SAS/NVMe
  • Max Drives Supported: 252

Storage

    Max Raw Capacity:

  • 5PB

    • Max Effective Capacity:

  • 10PB

Fibre Channel (Option)

  • 2x 32Gb

Networking

  • 2x 10/25/40/100GbE
  • 2 or 6 x 10GBaseT or SR

Expansion Shelves

  • 2x ES102

Power

    Power (Max Top. With 10 Cores):

  • 1300W, 800W

OS Support

  • TrueNAS Scale
  • TrueNAS Enterprise

IX Systems TrueNAS R50 Storage - Documentation

TrueNAS R50 Storage Data Sheet TrueNAS R50 Storage Basic Setup Guide TrueNAS R-Series Storage Basic Setup Guide TrueNAS Open Storage Product Line
