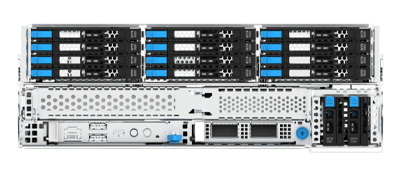

Each of the two nodes is equipped with 1x AMD EPYC 9005 or 9004 Series processor with a maximum TDP of up to 400W. Memory is provided by 12x DDR5 RDIMM slots per node, supporting up to 3TB of memory at speeds of up to 6400MT/s. Across the complete dual-node chassis, this provides a combined capacity of up to 6TB of DDR5 memory. A mix of NVMe form factors provides flexible storage for each node. Front-accessible storage includes 2x NVMe E1.S and 12x NVMe E3.S drive bays. 2x NVMe M.2 slots are located internally for additional storage or to boot the system. The E1.S and E3.S drives feature a tool-less, hot-swappable design for easier drive servicing.
For additional connectivity, each node provides 2x PCIe Gen5 x16 slots and 1x OCP 3.0 mezzanine slot. Management and platform security are provided through a DC-SCM 2.0 module featuring an ASPEED AST2600 BMC and AST1060 Root of Trust, with support for Redfish, IPMI 2.0, and iKVM. Instead of a conventional server power supply, the C2810Z5D2E3XD receives power through a 48V DC busbar within an ORv3 rack.
- AMD EPYC 9005 Series Processor
- 1x AMD Socket SP5
- Max up to 400W cTDP
- 12x DIMM slots
- Up to 3TB RDIMM DDR5-6400MT/s memory
- 12x Channels per CPU
Front:
- 2x NVMe E1.S / 12x NVMe E3.S hot-swap bays
Internal:
- 2x NVMe M.2 2280/22110 slots
PCIe:
- 1x PCIe Gen 5 x16 slot (FH/HL) 1x PCIe Gen 5 x16 slot (HH/HL)
OCP:
- 1x PCIe Gen 5 x16 OCP v3.0 mezz. slot
- 1x USB 2.0 port / (1) USB Type A port (UART)
- 1x Mini-DP Port
- 1x GbE port dedicated for IPMI
PHY:
- Realtek RTL8211FD-CG
- 48VDC busbar in ORv3 rack
Air:
- 4x 9256 hot-swap fans w/ (N+1) redundancy
- Aspeed AST2600
Form Factor:
- 2OU 2-Node Rackmount
Dimension (D x W x H):
- 34.45" x 21.14" x 3.63" (874.95 x 537 x 92.3mm)
Gross Weight:
- 41 kg (90.39 lbs.)
Net Weight:
- 32 kg (70.55 lbs.)
