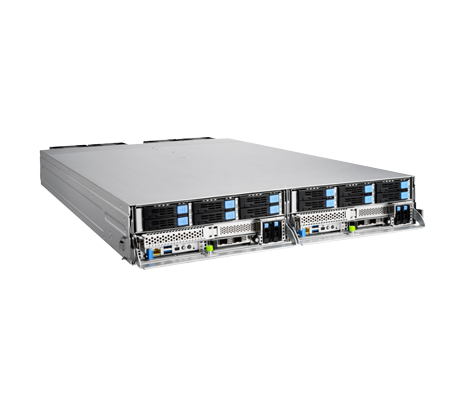

Additional InformationThe MiTAC C2810Z5D2HYBD includes 1x AMD EPYC 9005 or 9004 Series processor per node with a maximum TDP of up to 400W. Twelve memory channels, 12x DDR5 RDIMM slots, and up to 3TB of memory are available per node. Memory speeds reach up to 6400MT/s with AMD EPYC 9005 processors or 4800MT/s with AMD EPYC 9004 processors. Flexible storage is provided by 2x hot-swappable E1.S NVMe and 6x 2.5-inch hot-swappable U.2 NVMe drive bays, per node. Inside each node are an additional 2x NVMe M.2 2280/22110 slots using a PCIe Gen4 interface. The front E1.S and U.2 drives feature PCIe Gen5 connectivity and a tool-less design.
There are 2x PCIe Gen5 x16 slots on each node, consisting of 1x full-height, half-length (FHHL) and 1x half-height, half-length (HHHL) slot. An additional PCIe Gen5 x16 OCP 3.0 mezzanine slot supports networking expansion. Remote administration capabilities include Redfish, IPMI 2.0, and iKVM, with a dedicated 1GbE port for IPMI management. For cooling, the system offers 4x 9256 system fans with N+1 redundancy per node. Built around the ORv3 power architecture, the C2810Z5D2HYBD receives power from a 48V DC busbar integrated with the OCP compatible rack, rather than conventional server power supplies.
- 1x AMD EPYC 9005 Series Processor
- 1x AMD Socket SP5
- Max up to 400W cTDP
- 12x DIMM slots
- Up to 3TB RDIMM DDR5-6400MT/s memory
- 12x channels per CPU

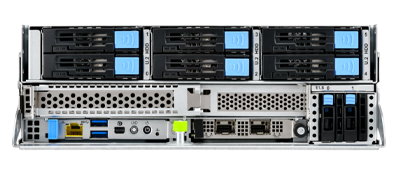

Front:
- 2x NVMe E1.S / 6x 2.5" NVMe U.2 hot-swap bays
Internal:
- 2x NVMe M.2 2280/22110 slots
PCIe:
- 1x PCIe Gen 5 x16 slot (FH/HL) (1) PCIe Gen 5 x16 slot (HH/HL)
OCP:
- 1x PCIe Gen 5 x16 OCP v3.0 mezz. slot
- 1x USB 2.0 port / (1) USB Type A port (UART)
- 1x Mini-DP port
- 1x GbE port dedicated for IPMI
PHY:
- Realtek RTL8211FD-CG
- 48V DC busbar
Air:
- 4x 9256 hot-swap fans w/ (N+1) redundancy
Form Factor:
- 2OU 2-Node Rackmount
Dimension (D x W x H):
- 34.45" x 21.14" x 3.63" (874.95 x 537 x 92.3mm)
Gross Weight:
- 41 kg (90.39 lbs.)
Net Weight:
- 32 kg (70.55 lbs.)
