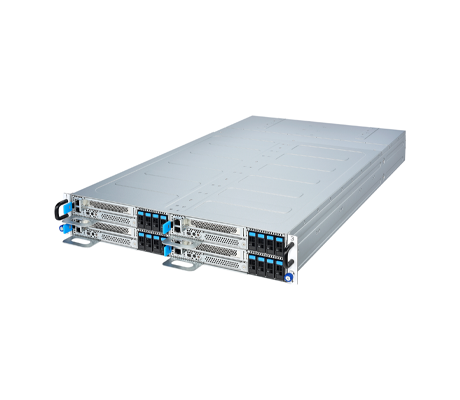

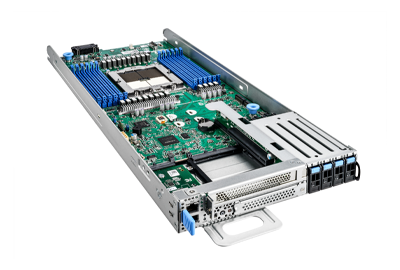

Featuring 12x memory channels per CPU, each node on the MiTAC M2810Z5 M2810Z5X4E1BC is equipped with 12x DDR5 memory module slots for 1x DIMM per Channel (1DPC). This allows for up to 3TB of memory per node, or a total of 12TB across the entire system. Depending on the installed CPUs, memory speeds range from 5600MT/s to 6400MT/s. For storage, the front of the chassis includes 16x hot-swappable NVMe PCIe 5.0 E1.S 15mm drives, with 4x drives allocated per blade. Additionally, each node offers 2x M.2 PCIe 4.0 x4 NVMe slots, compatible with 2280 or 22110 form factor SSDs.

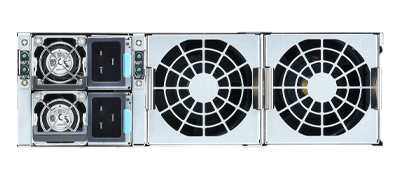

Expansion is supported through 1x PCIe 5.0 x16 full-height, half-length slot, and 1x PCIe 5.0 x16 OCP 3.0 slot per node. This allows for a high-speed LAN mezzanine card to be installed supporting data transfer speeds of up to 400Gb/s. System management is facilitated through a dedicated IPMI port or a 1GbE LAN port located on the front of each blade. This provides administrators access to hardware monitoring and control tools to ensure peak performance. At the rear of the chassis, a dual-redundant 2700W 80 Plus Titanium power supply is centrally located between the 4x cooling fans, which are evenly distributed across the system’s 4x nodes.
