MiTAC G4826Z5 G4826Z5U2BC-355X-575 GPU Server

MiTAC G4826Z5 G4826Z5U2BC-355X-575 GPU Server - System Overview

Additional Information

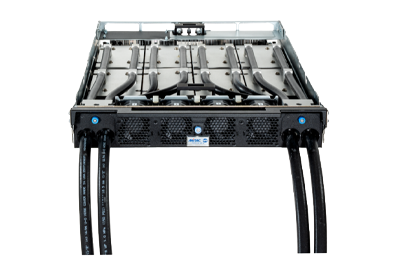

At the center of the MiTAC G4826Z5U2BC-355X-575 are 2x AMD EPYC 9575F processors, each providing 64 cores and 128 threads with a maximum TDP of 500W. The system is equipped with 24x DDR5 RDIMM slots supporting up to 6TB of memory at speeds of up to 6400MT/s. For local storage, the front of the 4U chassis provides 8x hot-swappable U.2 NVMe drive bays, each with PCIe Gen5 x4 connectivity. An additional 2x internal NVMe M.2 2280 slots provide storage within the system or can be used to support the OS.

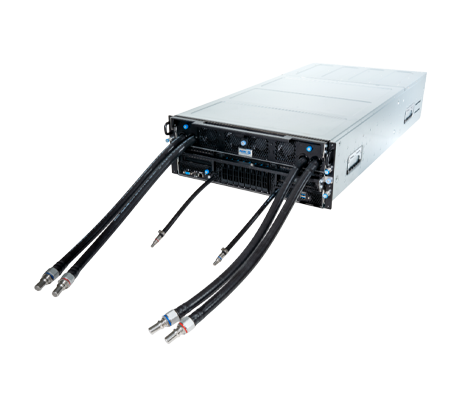

GPU acceleration is provided by 8x AMD Instinct MI355X accelerators with 288GB of HBM3E memory per GPU. A direct liquid cooling solution manages both the CPUs and the OAM form factor GPUs, helping maintain performance under compute-intensive workloads. For expansion and networking, the system provides 12x PCIe Gen5 x16 slots for integrating multiple low-latency 400G network cards. PCIe slots include 4x full-height, half-length slots and 8x half-height, half-length slots. Power is delivered through separate redundant power configurations, including 3+3 15,600W 54V DC power and 1+1 3,200W 12V DC Titanium common redundant power supplies (CRPS).
