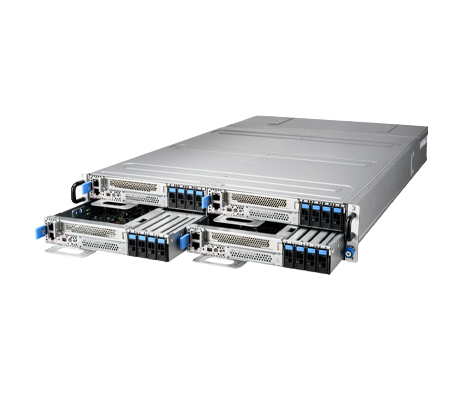

A single Intel Xeon 6 processor with a maximum TDP of up to 350W provides compute performance for each node. A total of 4TB of memory per node extends across 16x DDR5 RDIMM slots, with speeds up to 6400MT/s at 1DPC or 5200MT/s at 2DPC. Four, front-accessible, hot-swappable E1.S NVMe drive bays are available on each node, providing PCIe Gen5 x4 connectivity. Two additional NVMe M.2 2280/22110 slots are located internally and are dedicated to boot storage.
For additional connectivity, each node features 1x PCIe Gen5 x16 slot and 1x OCP 3.0 mezzanine slot for high-speed networking, storage controllers, accelerators, and other compatible devices. Cooling across the 4-node platform is handled by 4x 8056 fans. The system is equipped with 1+1 redundant 2700W hot-swappable power supplies with 80 PLUS Titanium efficiency.
- 1x Intel Socket LGA4710
- Intel Xeon 6 Scalable Processors
- Max up to 350W (TDP)
- 16x DIMM slots
- RDIMM DDR5 6400 MT/s (1DPC)
- RDIMM DDR5 5200 MT/s (2DPC)
- Up to 4TB RDIMM DDR5-6400 memory
- 8x Channels per CPU

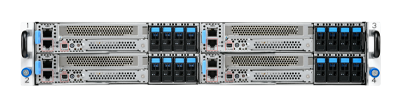

Front:
- 4x NVMe E1.S hot-swap bays
Internal:
- 2x NVMe M.2 2280/22110 slots (PCIe Gen 5)
- 1x PCIe Gen 5 x16 slot (FH/HL)
- 1x v3.0 mezz. slot (SFF)
PHY: Realtek RTL8211FD-CG
DisplayPort: 1x Mini DP for (2) USB 2.0 + 1x VGA ports
RJ-45 (Data): 1x GbE port
RJ-45 (IPMI): 1x GbE port dedicated for IPMI
- 1+1 2700W (AC 200-240V) 80 plus Titanium
Air: 4x 8056 hot-swap fans
Form Factor: 2U 4-node Rackmount
Dimensions (D x W x H): 29.92" x 17.64" x 3.39" (760 x 448 x 86mm)
