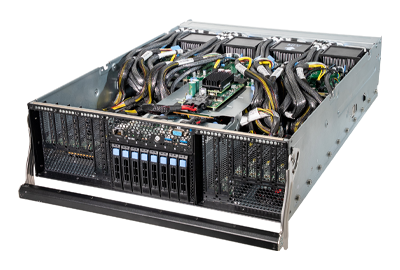

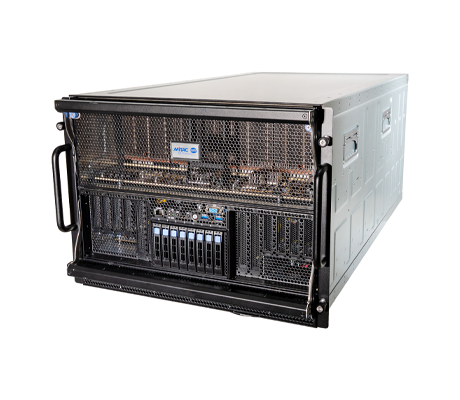

The front of the MiTAC G8825Z5 G8825Z5U2BC-325X-755 GPU Server offers 8x 2.5-inch NVMe U.2 hot-swap SSDs, plus 2x M.2 NVMe slots on the motherboard for 2280/22110 form factor cards to boot the operating system. The GPU server supports a front panel I/O for 1x GbE port dedicated for IPMI and 2x USB 3.0 ports. On the rear, there are 6x power supplies ranging from 4+2 2850W to 3300W 80 Plus Titanium level. This system is built to handle the demands of high-performance computing and artificial intelligence workloads.
To support demanding applications, the G8825Z5 G8825Z5U2BC-325X-755 GPU Server provides 2x AMD EPYC 9755 processors and 24x DDR5 RDIMMs with memory speeds of up to 6400MT/s. With a 12-channel memory architecture per CPU up to 6TB of system memory can be deployed. For expansion purposes, this machine holds 4x PCIe Gen5 x16 full-height, half-length and 8x PCIe Gen5 x16 half-height, half-length slots. A dedicated IPMI 2.0 compliant baseboard management controller (BMC) provides access to remotely manage the system.
Front Drive Bay Interface
Front Drive Backplane Support
Quantity
PHY
Output Watts
Redundancy
Efficiency
Connector Type
Resolution
Chipset
8U Rackmount
Dimensions (D x W x H)
Onboard Chipset
AST2600 iKVM Feature
AST2600 IPMI Feature
