MiTAC R2520G6 R2520G6U2BC Server - System Overview

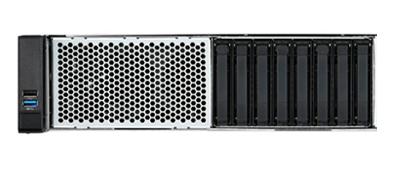

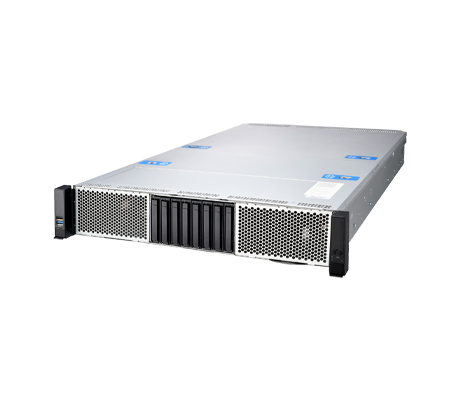

Supported memory types include RDIMM and 3DS RDIMM running at speeds of 6400 MHz (1DPC) or 5200 MHz (2DPC), as well as MRDIMMs at up to 8000 MHz (1DPC) when paired with P-core CPUs. The front of the MiTAC R2520G6 R2520G6U2BC server is equipped with 8x 2.5” hot-swap drive bays, supporting NVMe U.2, SATA, and SAS drives for flexible storage configurations. Internally, the system includes 2x PCIe Gen4 slots, compatible with 2280 and 22110 form factor M.2 SSDs. Powering the system are dual 1300W 1+1 redundant power supply units, each delivering an 80 PLUS Titanium certification.

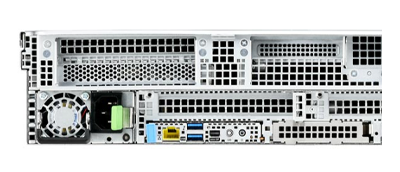

For expansion, the server offers the following connectivity options:
- 1x PCIe Gen5 x16 slot (x8 link, HH/HL)
- 2x PCIe Gen5 x16 slots (FH/HL)
- 2x PCIe Gen5 x16 slots (FH/FL)
- 2x PCIe Gen5 x16 OCP 3.0 mezzanine slots
The integrated Intelligent Platform Management Interface (IPMI), powered by the onboard ASPEED AST2600 baseboard management controller (BMC), enables both local and remote system monitoring and management. This remote management solution allows administrators to efficiently monitor system health, performance metrics, and operational status from virtually any location.
