MiTAC Alpine R2520G6 R2520G6U2XD Server

The MiTAC Alpine R2520G6 R2520G6U2XD server is a 24-bay hybrid system with support for NVMe U.2, SATA 6Gb/s, and SAS 24Gb/s setups. The high-performance computing server features dual sockets for Intel Xeon 6 processors with a TDP of up to 350W. Power is delivered by dual redundant 2000W hot-swap power supplies featuring 80 Plus Platinum level efficiency.

Overview

MiTAC Alpine R2520G6 R2520G6U2XD Server - System Overview

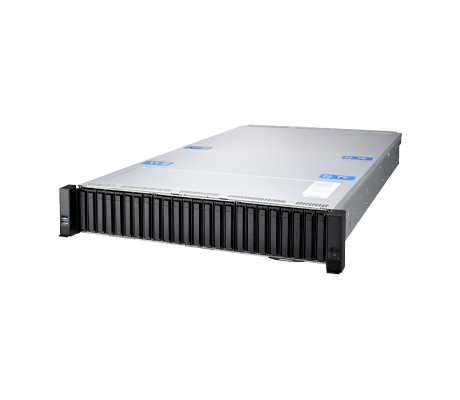

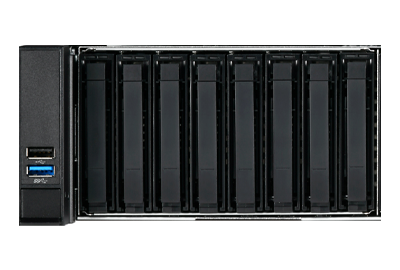

MiTAC Alpine R2520G6 R2520G6U2XD server front view

The 2U MiTAC R2520G6 R2520G6U2XD server supports a total of 32x DIMM slots with 8x memory channels per CPU for up to 8TB of memory. Standard RDIMMs and 3DS RDIMMs can be installed running at speeds of up to 6400MT/s, meanwhile MRDIMMs can reach 8000MT/s but only when P-core processors are installed. The system offers 5x PCIe slots and 2x OCP mezzanine card slots for expansion. Using the 2x full-height, full-length slots, the system can be outfitted with up to 2x double-wide GPUs.

EXPANSION

1x PCIe Gen 5 x16 slot (w/ x8 link in HH/HL)
2x PCIe Gen 5 x16 slots (FH/HL)
2x PCIe Gen 5 x16 slots for 2x Retimer Cards (AXXG5X16RTM)
2x PCIe 5.0 x16 OCP v3.0 mezzanine slots (supporting high-speed LAN modules with up to 400Gb/s bandwidth)

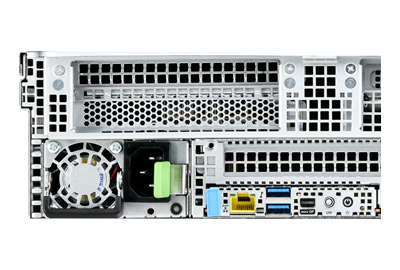

MiTAC Alpine R2520G6 R2520G6U2XD server rear view

Administrators can deploy the integrated Intelligent Platform Management Interface (IPMI) to manage the MiTAC R2520G6U2XD, which allows remote monitoring and control of the system’s hardware. IPMI can be accessed through a dedicated Realtek RTL8211FD-CG port. An optional the DC-SCM v2.0 module can extend the server’s management features with more granular control and enhanced monitoring tools.

Specifications

MiTAC Alpine R2520G6 R2520G6U2XD Server - Specifications

Processor - 2 Sockets

2x Intel Xeon 6 Processors from 6700 series with E-cores and P-cores
Max TDP up to 350W
(2) LGA4710
Chipset: Aspeed AST2600

GPU

NVIDIA H100 PCIe (80GB, 350W, PCIe 5.0 x16)
NVIDIA L40 (48GB, 300W, PCIe 4.0x16)
NVIDIA L40S (48GB, 350W, PCIe 4.0x16)
NVIDIA Hopper H100 NVL (94GB, 400W, PCIe 5.0x16)
NVIDIA L4 (24GB, 72W, PCIe 4.0x16)
NVIDIA Hopper H200 NVL (141GB, 600W, PCIe 5.0x16)

Memory

32x DDR5 DIMM slots
RDIMM / RDIMM-3DS DDR5 6400 MT/s (1DPC) / 5200 MT/s (2DPC)
MRDIMM 8000 (1DPC) -P Core only
Up to 8192GB RDIMM

Drive Bays

24x 2.5" Hot-Swap SSDs

Front Drive Bay Interface

24x SATA 6Gb/s / SAS 24Gb/s / NVMe U.2

Front Drive Backplane Support

SAS 24Gb/s /SATA 6Gb/s /NVMe

I/O Ports

1x USB3.0 port / 1x USB UART (on DCSCM)
1x Mini Display Port
RJ-45: 1x GbE port dedicated for IPMI

Expansion Slots

1x PCIe Gen 5 x16 slot (w/ x8 link in HH/HL)
2x PCIe Gen 5 x16 slots (FH/HL)
2x PCIe Gen 5 x16 slots for (2) Retimer Cards (AXXG5X16RTM)
Others: 2x PCIe Gen 5 x16 OCP 3.0 mezzanine slots

LAN

1x GbE dedicated for IPMI

PHY

Realtek RTL8211F

Power (1 + 1 Redundancy)

2000W 80 Plus Titanium
AC 100-127V/12A / AC 200-240V/8.5A

Graphics

Mini Display Port

Resolution

Up to 1920 x 1200

Chipset

Aspeed AST2600

Chassis

Dimensions (D x W x H)

30.31" x 17.24" x 3.43" (770 x 438 x 87mm)

Management

Onboard Chipset

Onboard Aspeed AST2600 (on DCSCM module)

AST2600 iKVM Feature

24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

AST2600 IPMI Feature

IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

Documentation

MiTAC Alpine R2520G6 R2520G6U2XD Server - Documentation

MiTAC Alpine R2520G6 R2520G6U2XD Server Data Sheet MiTAC Alpine R2520G6 R2520G6U2XD Server Quick Installation Guide MiTAC Alpine R2520G6 R2520G6U2XD Technical Service Guide MiTAC BMC Web User Guide MiTAC AST2600 BMC User Guide
