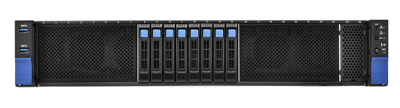

Additional InformationAcross the front of the MiTAC B8261T85E8HR-2T-N-HE are 8x 2.5-inch hot-swappable U.2 NVMe drive bays. Dual AMD SP5 sockets support AMD EPYC 9005 and 9004 Series processors with a maximum TDP of 500W. Memory is distributed across 24x DDR5 DIMM slots, with 12x slots allocated to each processor, supporting up to 6TB of memory at speeds of up to 6400MT/s. GPU and PCIe expansion is divided among 6x PCIe Gen5 x16 slots. Four full-height, 10.5-inch, double-width slots accommodate up to 4x GPU accelerators, while an additional 2x half-height, half-length PCIe Gen5 x16 slots provide connectivity for other expansion devices.
Supported GPUs:
4x NVIDIA RTX PRO 6000 Blackwell Max-Q WS Edition (@300W)
4x NVIDIA L40S (@350W)
4x NVIDIA H100 NVL (@400W)
2x NVIDIA H200 NVL (@600W)
2x NVIDIA RTX PRO 6000 Blackwell Server Edition (@600W)
4x NVIDIA RTX PRO 4500 Blackwell Server Edition (@165W)
4x NVIDIA RTX PRO 4500 Blackwell WS Edition (@200W)
2x AMD Instinct MI350P (@600W)
4x AMD Radeon AI PRO R9700S (@300W)
Integrated networking includes 2x 10GBase-T LAN ports, accompanied by a dedicated 1GbE IPMI port for system management. Remote monitoring and administration are provided by an integrated ASPEED AST2600 BMC with support for IPMI 2.0 and Redfish. Cooling is handled by 6x hot-swappable system fans supplemented by 2x rear fans, while dual 2700W hot-swappable power supplies with 80 PLUS Titanium efficiency provide redundant power to the system.
- 2x AMD EPYC 9005/9004 Series Processors
- 2x AMD Socket SP5
- Max up to 500W cTDP
- Ambient temperature 25℃ when cTDP @ 500W
- 24x DIMM Slots
- Up to 6TB RDIMM DDR5-6400MT/s memory
- 12x Channels per CPU
- RDIMM DDR5 6400 MT/s (EPYC 9005 w/ 1DPC)
- RDIMM DDR5 4800 MT/s (EPYC 9004 w/ 1DPC)
- 4x NVIDIA RTX PRO 6000 Blackwell Max-Q WS Edition (@300W)
- 4x NVIDIA L40S (@350W)
- 4x NVIDIA H100 NVL (@400W)
- 2x NVIDIA H200 NVL (@600W)
- 2x NVIDIA RTX PRO 6000 Blackwell Server Edition (@600W)
- 4x NVIDIA RTX PRO 4500 Blackwell Server Edition (@165W)
- 4x NVIDIA RTX PRO 4500 Blackwell WS Edition (@200W)
- 2x AMD Instinct MI350P (@600W)
- 4x AMD Radeon AI PRO R9700S (@300W)
- 8x NVMe U.2 hot-swap bays
PCIe:
- 4x PCIe Gen 5 x16 slots (FH/10.5"L)* (2) PCIe Gen 5 x16 slots (HH/HL)
- Up to 2x 600W or 4x 400W double-width GPU cards supported; hybrid config. of different types of GPU in a system is not supported.
Front I/O:
- 2x USB 3.2 Gen 1 ports
Rear I/O:
- 2x USB 3.2 Gen 1 ports
- 1x D-sub 15-pin port
- 2x 10GbE ports
- 1x GbE port dedicated for IPMI
Controller:
- 1x Intel X550-AT2
PHY:
- Realtek RTL8211FD-CG
- 1+1 2700W 80 PLUS Titanium
Air:
- 6x 6056 hot-swap fans 2x 8038 exhaust fans
- Aspeed AST2600
Form Factor:
- 2U Rackmount
Dimension (D x W x H):
- 33.46" x 17.63" x 3.43" (850 x 448 x 87mm)
Gross Weight:
- 39.2 kg (86.42 lbs)
Net Weight:
- 29.2 kg (64.37 lbs)
