Tyan FT83AB7129 B7129F83AV8E4HR-N-HE GPU Server

The 4U Tyan FT83AB7129 B7129F83AV8E4HR-N-HE GPU Server supports 10x double wide GPUs in PCIe 4.0 x16 slots. There are 12x 3.5-inch storage bays for SATA and SAS configurations lining the front of the chassis. The 4U platform also gives the option to deploy 4x of these drive bays with NVMe U.2 hot-swap drives. In addition to the storage bays on the front panel, there are 2x NVMe M.2 slots for 2280 form factor cards on the motherboard.
Configure

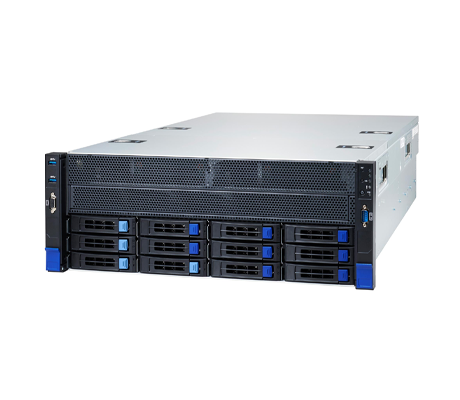

Tyan FT83AB7129 B7129F83AV8E4HR-N-HE GPU Server front
Intel Partner Gold NVIDIA Elite Partner
Configure

Tyan FT83AB7129 B7129F83AV8E4HR-N-HE GPU Server - System Overview

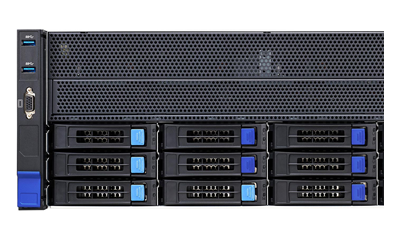

Tyan FT83AB7129 B7129F83AV8E4HR-N-HE GPU Server front view

Featuring dual 3rd generation Intel Xeon Scalable processors with a maximum TDP of 270W, the Tyan FT83AB7129 B7129F83AV8E4HR-N-HE GPU Server supports 32x DDR4 memory modules with 8x channel memory architecture per CPU. It is compatible with RDIMMs, LRDIMMs, 3DS RDIMMs, and 3DS LRDIMMs with speeds ranging from 2400 MHz to 3200MHz. RDIMMs support up to 4TB, meanwhile LRDIMMs, 3DS LRDIMMs, and 3DS RDIMMs support up to 8TB with 2x DIMM per Channel (2DPC). Along with the 10x PCIe slots for the GPUs, the server includes 3x PCIe 4.0 x16 slots and 1x PCIe Gen4 x16 OCP 3.0 mezzanine card slot with a pull tab. For RAID, the system can be outfitted with a Graid Technologies storage controller. The rear of the chassis supports 1x GbE port dedicated for IPMI and 3+1 redundant 3000W 80 plus Titanium level power supplies.

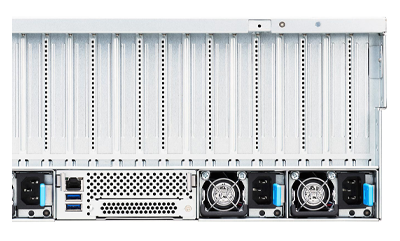

Tyan FT83AB7129 B7129F83AV8E4HR-N-HE GPU Server rear view

Tyan FT83AB7129 B7129F83AV8E4HR-N-HE GPU Server - Specifications

Processor - 2 Sockets

  • 2x 3rd Gen Intel Xeon Scalable Processors
  • Max TDP up to 270W
  • (2) LGA4189
  • Chipset: Intel C621A

GPU

  • NVIDIA L40S / 48GB
  • NVIDIA H100 NVL / 94GB
  • NVIDIA A100 / 80GB
  • NVIDIA A40 / 48GB
  • NVIDIA A30 / 24GB

Memory

  • 32x DDR5 DIMM slots
  • DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200
  • Up to 4,096GB RDIMM/ 8,192GB LRDIMM/ 8,192GB RDIMM 3DS/LRDIMM 3DS
  • 8 Channels per CPU / 2 DIMM slots per Channel

Drive Bays

  • 12x 3.5"/2.5" Hot-Swap HDD/SSDs w/ 4x NVMe

Front Drive Bay Interface

  • 12x SATA 6Gb/s with 4x NVMe ports

Front Drive Backplane Support

  • SAS 12Gb/s /SATA 6Gb/s /NVMe

I/O Ports

  • 2x USB3.0 ports (@ front) / 2x USB3.0 ports (@ rear) (from M7129F83A-RIO)
  • 1x DB-9 COM port
  • 1x D-Sub 15-pin port
  • 1x GbE port dedicated for IPMI (from M7129F83A-RIO)

Expansion Slots

  • 3x PCIe Gen 4 x16 slots (FH/HL) / 10x PCIe Gen 4 x16 slots (FH/10.5"L/DW )
  • 2x M7129F83A-L16 riser card for 2x PCIe Gen.4 x16 slots (left)
  • Others: 1x PCIe Gen 4 x16 OCP 3.0 slot for mezz. w/ pull tab

LAN

Quantity

  • 1x GbE dedicated for IPMI

PHY

  • Realtek RTL8211E

Power (3 + 1 Redundancy)

  • 3,000 Watts (100-127Vac input) / 6,000 Watts (200-240Vac input)
  • 80 plus Titanium

Graphics

Connector Type

  • D-Sub 15-pin

Resolution

  • Up to 1920 x 1200

Chipset

  • Aspeed AST2600

Chassis

4U Rackmount

Dimensions (D x W x H)

  • 32.68" x 17.26" x 6.9" (830 x 438.4 x 176mm)

Management

Onboard Chipset

  • Onboard Aspeed AST2600 (on DCSCM module)

AST2600 iKVM Feature

  • 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

AST2600 IPMI Feature

  • IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

Tyan FT83AB7129 B7129F83AV8E4HR-N-HE GPU Server - Documentation

Tyan FT83AB7129 B7129F83AV8E4HR-N-HE GPU Server Data Sheet Tyan FT83AB7129 B7129F83AV8E4HR-N-HE GPU Server User Manual Tyan AST2600 Redfish User Guide
