Tyan GC68AB8056 B8056G68AE12HR-2T-TU-HE Cloud Server

The Tyan GC68AB8056 B8056G68AE12HR-2T-TU-HE is a 1U cloud server built for high-performance and versatile data center applications. It holds 12x 2.5-inch hot-swap NVMe drive bays on the front of the chassis. 4x of these bays can accommodate 2.5-inch hot-swap SATA at 6Gb/s or SAS at 12Gb/s. To deliver efficient and continuous uptime, power on this system is handled by dual hot-swappable 850W 80 Plus Platinum-certified power supplies.

Overview

Tyan GC68AB8056 B8056G68AE12HR-2T-TU-HE Cloud Server - System Overview

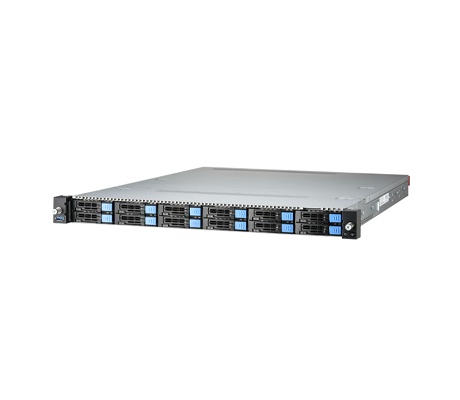

Tyan GC68AB8056 B8056G68AE12HR-2T-TU-HE server front view Powered by 1x AMD EPYC 9004 or 9005 series processor with a configurable thermal design power (TDP) rating of up to 360W, the Tyan B8056G68AE12HR-2T-TU-HE server supports 24x DIMM slots across 12x memory channels per CPU, allowing a maximum capacity of 6TB. Memory speed varies depending on the specific AMD EPYC series processors installed. To boot the operating system, this machine offers 2x M.2 PCIe Gen 4 slots on the motherboard, compatible with 22110 or 2280 form factor cards. PCIe expansion is available via 2x riser cards for 1x FH/HL PCIe Gen 5 x16 slot (left) and 1x FH/HL PCIe Gen 5 x16 slot (right), plus a dedicated PCIe Gen 5 x16 OCP 3.0 compatible mezzanine slot to support additional connectivity or networking modules.

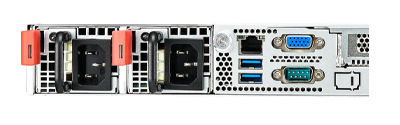

Tyan GC68AB8056 B8056G68AE12HR-2T-TU-HE server rear view Administrators can manage the B8056G68AE12HR-2T-TU-HE server using the integrated AST2600 Baseboard Management Controller (BMC), supporting both IPMI 2.0 and Redfish protocols. A dedicated RJ45 GbE management port on the rear panel provides remote access for real-time monitoring of system health, temperature, and hardware status.

Specifications

Tyan GC68AB8056 B8056G68AE12HR-2T-TU-HE Cloud Server - Specifications

Processor - 1 Socket

1x AMD EPYC 9005 Series Processor
1x AMD EPYC 9004 Series Processor
Max TDP up to 360W
(1) AMD Socket SP5
Chipset: Aspeed AST2600

Memory

24x DDR5 DIMM slots

AMD EPYC 9005

RDIMM: Up to 5200 MT/s (1DPC)
RDIMM: Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC)

AMD EPYC 9004

RDIMM: Up to 4800 MT/s1DPC), 3600 MT/s (2DPC)
Up to 6,144GB RDIMM/3DS RDIMM DDR5 5200 memory
12x Channels per CPU

Drive Bays

12x 2.5" hot-swap NVMe HDD/SSDs with 4x 2.5" hot-swap SATA 6Gb/s

Front Drive Bay Interface

12x NVMe with 4x SATA 6Gb/s / SAS 12Gb/s ports

Front Drive Backplane Support

SAS 12Gb/s /SATA 6Gb/s /NVMe

I/O Ports

USB

1x USB3.2 Gen.1 conn. (Type-A) / 1x USB3.2 Gen.1 header / 1x USB3.2 Gen.1 port (@ front) / 2x USB3.2 Gen.1 ports (@ rear)

COM

1x DB-9 COM port

VGA

1x D-Sub 15-pin port

RJ45

2x 10 GbE ports + 1x dedicated GbE for IPMI

Expansion Slots

2x PCIe Gen 5 x16 slots
1x M7136G68-L16-1F riser card for 1x FH/HL PCIe Gen.5 x16 slot (Left) / 1x M7136G68-R16-1F riser card for 1x FH/HL PCIe Gen.5 x16 slot (Right)
Others: 1x PCIe Gen 5 x16 OCP 3.0 mezzanine slot

LAN

Quantity

2x 10GbE ports + 1x GbE dedicated for IPMI

Controller

Intel X710-AT2

PHY

Realtek RTL8211F

Power (1 + 1 Redundancy)

1+1 Hot-swap 850W 80 Plus Platinum
AC 100-240V/12-6A

Graphics

Connector Type

D-Sub 15-pin

Resolution

Up to 1920 x 1200

Chipset

Aspeed AST2600

Chassis

1U Rackmount

Dimensions (D x W x H)

26.77" x 17.26" x 1.69" (680 x 438.5 x 43mm)

Management

Onboard Chipset

Onboard Aspeed AST2600

AST2600 iKVM Feature

24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

AST2600 IPMI Feature

IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

Documentation

Tyan GC68AB8056 B8056G68AE12HR-2T-TU-HE Cloud Server - Documentation

MiTAC AST2600 BMC User Guide MiTAC BMC Web User Guide Tyan GC68AB8056 B8056G68AE12HR-2T-TU-HE Server Data Sheet Tyan GC68AB8056 B8056G68AE12HR-2T-TU-HE Server Quick Installation Guide Tyan GC68AB8056 B8056G68AE12HR-2T-TU-HE User Manual
