Tyan HG68B8016 B8016H68D5 Node Server

The AMD-based Tyan HG68B8016 B8016H68D5 Node Server is built for demanding requirements of cloud gaming environments. It includes 5x independent computing nodes within a 6U chassis, each featuring a single AMD EPYC 4004 or 4005 series processor or 1x AMD Ryzen 7000 series processor with a maximum TDP of 105W. Networking capabilities include 2x 1000Base-T ports per node, ensuring reliable and high-speed data transfer.

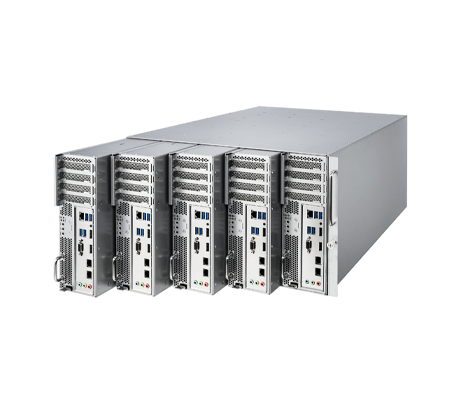

Tyan HG68B8016 B8016H68D5 Node Server side view
AMD Executive Elite System Builder

Tyan HG68B8016 B8016H68D5 Node Server - System Overview

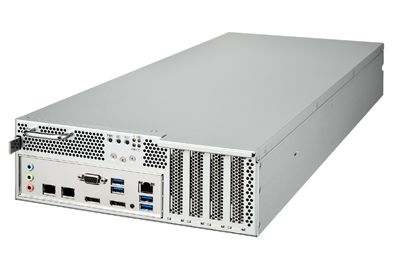

Tyan B8016H68D5 server front view Tyan B8016H68D5 server rear view

Each node offers up to 128GB with 4x DDR5 UDIMM slots running at 5600MT/s with options for ECC and non-ECC configurations. This ensures high-speed data processing and reliability, essential for smooth and responsive gaming performance. Storage options for each node include 2x NVMe M.2 slots via a PCIe Gen 4 interface.

Each node is equipped with: 1x PCIe Gen 4 x4 slot, 1x PCIe Gen 4 x8 slot (w/ x4 link), and 1x PCIe Gen 5 x16 slot. These slots allow for GPUs, network cards, or other PCIe devices to enhance performance and flexibility. The system features dual redundant (1+1) 800W CRPS power supplies with 80+ Titanium certification to power all 5x server nodes. For management, the AST2600 BMC provides control with IPMI and Redfish support.

Tyan HG68B8016 B8016H68D5 Node Server - Specifications

Processor - 1 Socket (Per Node)

  • 1x AMD Ryzen 7000 Series Processor
  • 1x AMD EPYC 4005/4004 Series Processor
  • Max up to 105W
  • 1x AMD Socket AM5

Chipset (Per Node)

  • AMD B650 FCH

Memory (Per Node)

Supported DIMMs

  • 4x DIMMs, 2-channels per CPU
  • DDR5 ECC UDIMM & non-ECC 5600
  • Up to 128GB UDIMM

Storage (Per Node)

  • M.2 Connector: 2x 2280 (by PCIe.4 interface)

I/O Ports & Expansion Slots (Per Node)

I/O Ports:

  • 4x USB 3.2 Gen1 ports
  • VGA: 2x Display ports/ 1x D-Sub 15-pin port
  • RJ-45: 2x GbE
  • Audio: 1x Line in/line out/MIC

Expansion Slots

  • 1x PCIe Gen 4 x4 slot / 1x PCIe Gen 4 x8 slot ( w/ x4 link) / 1x PCIe Gen 5 x16 slot

LAN (Per Node)

Quantity

  • 1x GbE ports

Controller

  • Intel I210

PHY

  • Realtek RTL8211F

Power (1 + 1 Redundancy) (Per Node)

  • 800 Watts AC 100-127V/12A / AC 200-240V/5A 80 Plus Titanium

Graphics (Per Node)

Connector Type

  • D-Sub 15 pin

Resolution

  • Up to 1920 x 1200

Chipset

  • Aspeed AST2600

Chassis

6U Rack

Dimensions (D x W x H)

  • 26.85" x 17.60" x 10.44" (682 x 447 x 265.3mm)

Management

AST2600 iKVM Feature

  • 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

AST2600 IPMI Feature

  • IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
