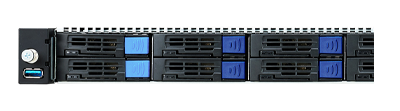

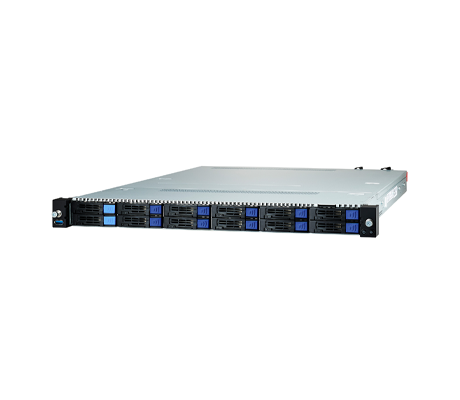

Part of Tyan’s Cloud Server line up, the Tyan Thunder CX GC68AB7126 B7126G68AV10E2HR server offers high-density and energy efficiency plus impressive compute, storage, and memory. The front of the server features 12x 2.5-inch hot swap hybrid storage bays. Inside, dual Intel Xeon Scalable processors provide support for up to 4TB of memory and PCIe 4.0 compatibility.
With a variable feature set, the Tyan Thunder CX GC68AB7126 B7126G68AV10E2HR server can support applications in Big Data Analytics, complex session analysis, data visualization and a number of other complex and business critical tasks. With dual processors and a fairly large memory footprint for a 1U server, this system is also a performer for in-memory applications. It supports dual 850W 80 PLUS Platinum power supply units (PSU).
3rd generation Intel Xeon Scalable processors with a thermal design power (TDP) power rating of up to 205W provide the computational power for this system. These processors also provide more bandwidth for I/O and NVMe storage with PCIe 4.0 offering twice the bandwidth compared to PCIe 3.0. They also feature an 8-memory channel architecture for better performance.
The Tyan Thunder CX GC68AB7126 B7126G68AV10E2HR server is outfitted with 12x SAS3, SATA3 front storage bays, 2x of which can be used for NVMe storage devices. A single PCIe 4.0 x4 slot on the system board supports an NVMe M.2 storage device that can be used for the OS. The system is also compatible with virtual RAID on CPU pr VROC for control of NVMe storage devices with a hybrid hardware, software approach offering limited RAID functionality.
Registered DIMMs (RDIMM) will provide up to 2TB of memory while Load-Reduced DIMMs (LRDIMM), plus 3DS RDIMMs and LRDIMMs will provide up to 4TB of memory. Memory modules are supported in 16x memory module slots divided equally between the 2 CPUs.
In addition to supporting a PCIe x16 mezzanine card slot for an OCP 3.0 network card, the system also supports 2x PCIe x16 full-height, half-length slots on 2x separate pre-installed riser cards. Supported OCP cards offer a number of different connection port options and network connection speeds, preserving the limited PCIe slots for other options, like a SAS HBA/RAID adapter. There are also 2x integrated GbE ports and a GbE port for the integrated platform management interface (IPMI).
Compliant with IPMI 2.0 standards, the system features an ASPEED AST 2500 baseboard management controller (BMC) for at chassis and remote management of the system. It supports storage over IP and remote platform-flash plus USB 2.0 virtual hub. Using a MegaRAC SP-X solution for the user interface provides a clean graphic layout for Administrators to quickly check status indicators for temperatures, voltage, fan speeds and a number of other metrics.
Offering a might adaptable configuration, the 1U Tyan Thunder CX GC68AB7126 B7126G68AV10E2HR server can support applications in interactive analysis, in-memory database, data enrichment, and can be used for complex sessions analysis. 3rd generation Intel Xeon Scalable processors also provide PCIe 4.0 ideal for better I/O bandwidth and support of NVMe storage devices.
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
