Tyan Thunder CX GC68AB7136 B7136G68AV4E8HR-2T Server

Outfitted with dual 4th generation Intel Xeon Scalable CPUs, the 1U Tyan Thunder CX GC68AB7136 B7136G68AV4E8HR-2T Server can provide up to 2TB of memory. 12x 2.5-inch front accessible drive bays support 4x hot-swap SATA and 8x NVMe U.2 bays. SATA is the default connection with SAS drives optional requiring a discrete SAS HBA RAID storage controller. 2x NVME M.2 drives can be installed on the system board for support of the OS.
Configure
Tyan Thunder CX GC68AB7136 B7136G68AV4E8HR-2T Server side view
Intel Partner Gold NVIDIA Elite Partner
Configure

Tyan Thunder CX GC68AB7136 B7136G68AV4E8HR-2T Server - System Overview

Featuring 2x full-height, half -length PCIe 5.0 x16 slots and another x16 mezzanine slot for an OCP 3.0 card, the Tyan B7136G68AV4E8HR-2T Server also has integrated 10GbE ports for standard network connectivity. Designed for mainstream cloud applications, this platform offers one of Tyan’s Tempest motherboards powered by dual redundant 1+1 850W PSUs.

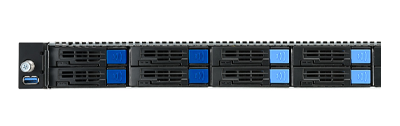

Tyan Thunder CX B7136G68AV4E8HR-2T server front view Tyan Thunder CX B7136G68AV4E8HR-2T server rear view

Tyan Thunder CX GC68AB7136 B7136G68AV4E8HR-2T Server - Specifications

Processor - 2 Sockets

  • 4th Generation Intel Xeon Scalable Processor
  • Max up to 270W
  • (2) LGA4677

Chipset

    Intel C741

Memory

    Supported DIMMs

  • 16x DIMMs, 8-channels per CPU
  • RDIMM/3DS RDIMM

    • RDIMM/LRDIMM

  • Up to 2,048GB RDIMM/3DS RDIMM DDR5
  • Up to 4800/4400 MHz

Drive Bays

  • 4x 2.5" Hot-Swap SATA/SAS HDD/SSDs
  • 8x 2.5" Hot-Swap NVMe HDD/SSDs
  • SAS 12Gb/s /SATA 6Gb/s /NVMe

I/O Ports & Expansion Slots

    I/O Ports:

  • (2) USB 3.2 Gen1 ports (@ rear)
  • COM: (1) DB-9 COM port
  • VGA: 1x D-Sub 15-pin port
  • RJ-45: 2x 10GbE ports + 1x dedicated for IPMI

    • Expansion Slots

  • 2x PCIe Gen5 x16 slots
  • Pre-Installed Riser: (1) M7136G68-L16-1F (1) FH/HL PCIe Gen.5 x16 slot (Left)
  • Pre-Installed Riser: (1) M7136G68-R16-1F for (1) FH/HL PCIe Gen.5 x16 slot (Right)
  • Others: 1x PCIe Gen.5 x16 OCP 3.0 mezzanine slot

LAN

    Quantity

  • 2x 10GbE ports + 1x GbE dedicated for IPMI

    • PHY

  • Realtek RTL8211F

RAID Controller

    RAID 0/1/10/5 (Intel RSTe)

Power (1 + 1 Redundancy)

  • RPSU 80-PLUS Platinum 850 Watts
  • AC 100-240V/12~6A

Graphics

    Connector Type

  • D-Sub 15 pin

    • Resolution

  • Up to 1920 x 1200

    • Chipset

  • Aspeed AST2600

Chassis

    1U Rack

    Dimensions (D x W x H)

  • 26.77" x 17.26" x 1.69" (680 x 438.5 x 43mm)

Management

    AST2500 iKVM Feature

  • 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

    • AST2600 IPMI Feature

  • IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

Tyan Thunder CX GC68AB7136 B7136G68AV4E8HR-2T Server - Documentation

Tyan Thunder CX GC68AB7136 B7136G68AV4E8HR-2T Data Sheet Tyan Thunder CX GC68AB7136 B7136G68AV4E8HR-2T Quick Installation Guide Tyan Thunder CX GC68AB7136 B7136G68AV4E8HR-2T Service Engineer's Manual Tyan Thunder Intel Catalog Tyan AST2600 Configuration Guide
