Tyan Thunder CX GC68AB7136 B7136G68AV4E8HR Server

Delivering up to 2TB of memory in a 1U chassis, the Tyan Thunder CX GC68AB7136 B7136G68AV4E8HR Server features dual 4th generation Intel Xeon Scalable processors. It has 12x SATA/SAS 2.5-inch storage bays in front. Drive bays support 4x SATA and 8x NVMe U.2 drive formats. SATA drives are supported natively but thanks to the hybrid backplane SAS drives can be installed with the addition of a SAS HBA/RAID controller card. For expansion options there are 2 full-height, half-length PCIe 5.0 x16 slots, plus a x16 mezzanine card slot for an OCP 3.0 card.
Configure

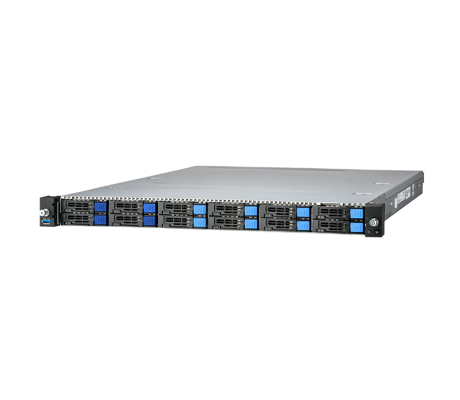

Tyan Thunder CX GC68AB7136 B7136G68AV4E8HR-2T Server side view
Intel Partner Gold NVIDIA Elite Partner
Configure

Tyan Thunder CX GC68AB7136 B7136G68AV4E8HR Server - System Overview

Two x4 PCIe 5.0 slots on the system board of the Tyan B7136G68AV4E8HR Server are for NVMe M.2 drives that can be used to support the OS. A single management port on the back provides for remote management of the system but there are no integrated ethernet ports and users will have to rely on the expansion slot and OCP 3.0 mezzanine card for network communications. As a mainstream cloud appliance, this platform offers reliability, power efficiency, and scalability to meet your needs now and into the future.

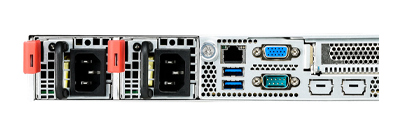

Tyan Thunder CX B7136G68AV4E8HR server front view Tyan Thunder CX B7136G68AV4E8HR server rear view

Tyan Thunder CX GC68AB7136 B7136G68AV4E8HR Server - Specifications

Processor - 2 Sockets

  • 4th Generation Intel Xeon Scalable Processor
  • Max up to 270W
  • (2) LGA4677

Chipset

    Intel C741

Memory

    Supported DIMMs

  • 16x DIMMs, 8-channels per CPU
  • RDIMM/3DS RDIMM

    • RDIMM/LRDIMM

  • Up to 2,048GB RDIMM/3DS RDIMM DDR5
  • Up to 4800/4400 MHz

Drive Bays

  • 4x 2.5" Hot-Swap SATA/SAS HDD/SSDs
  • 8x 2.5" Hot-Swap NVMe HDD/SSDs
  • SAS 12Gb/s /SATA 6Gb/s /NVMe

I/O Ports & Expansion Slots

    I/O Ports:

  • (2) USB 3.2 Gen1 ports (@ rear)
  • COM: (1) DB-9 COM port
  • VGA: 1x D-Sub 15-pin port
  • RJ-45: 2x 10GbE ports + 1x dedicated for IPMI

    • Expansion Slots

  • 2x PCIe Gen5 x16 slots
  • Pre-Installed Riser: (1) M7136G68-L16-1F (1) FH/HL PCIe Gen.5 x16 slot (Left)
  • Pre-Installed Riser: (1) M7136G68-R16-1F for (1) FH/HL PCIe Gen.5 x16 slot (Right)
  • Others: 1x PCIe Gen.5 x16 OCP 3.0 mezzanine slot

LAN

    Quantity

  • 2x 10GbE ports + 1x GbE dedicated for IPMI

    • PHY

  • Realtek RTL8211F

RAID Controller

    RAID 0/1/10/5 (Intel RSTe)

Power (1 + 1 Redundancy)

  • RPSU 80-PLUS Platinum 850 Watts
  • AC 100-240V/12~6A

Graphics

    Connector Type

  • D-Sub 15 pin

    • Resolution

  • Up to 1920 x 1200

    • Chipset

  • Aspeed AST2600

Chassis

    1U Rack

    Dimensions (D x W x H)

  • 26.77" x 17.26" x 1.69" (680 x 438.5 x 43mm)

Management

    AST2500 iKVM Feature

  • 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

    • AST2600 IPMI Feature

  • IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
