Tyan Thunder CX GC79AB7132 B7132G79AE12HR-2T Server

Outfitted to capacity with up to 4TB DDR5 memory, the Tyan Thunder CX GC79AB7132 B7132G79AE12HR-2T Server supports the 4th generation Intel Xeon Scalable processors. The 1U chassis has 12x 2.5-inch storage bays up front that can be configured with U.2 NVMe storage devices. In addition, there are two slots on the system board for NVMe M.2 drives that can be used to boot the OS. 2x full-height, half-length PCIe 5.0 x16 slots provide expansion options along with a OCP 3.0 x16 LAN mezzanine slots. 2x 10GbE ports provide an integrated network interface controller.
Configure

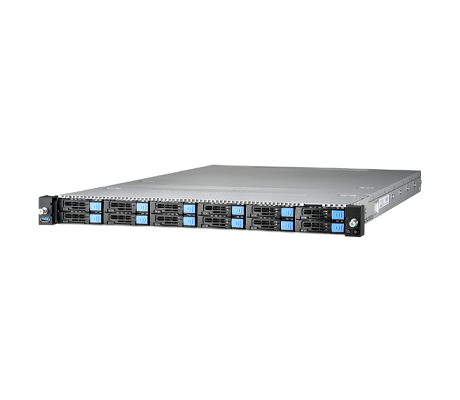

Tyan Thunder CX GC79AB7132 B7132G79AE12HR-2T Server side view
Intel Partner Gold NVIDIA Elite Partner
Configure

Tyan Thunder CX GC79AB7132 B7132G79AE12HR-2T Server - System Overview

Tyan Thunder CX B7132G79AE12HR-2T server front view

Excelling at mainstream cloud applications, the Tyan Thunder CX GC79AB7132 B7132G79AE12HR-2T Server can be used for web and mobile applications, plus big data, for virtual desktop infrastructure (VDI), internet of Things (IoT), artificial intelligence and a host of other options. The system is powered by dual redundant 1000W or 1200W PLUS Platinum power supply units (PSU).

Tyan Thunder CX B7132G79AE12HR-2T server rear view

Available Configurations

Explore available configurations for the Tyan Thunder CX GC79AB7132 B7132G79AE12HR-2T Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Tyan Thunder CX GC79AB7132 B7132G79AE12HR-2T Server - Specifications

Processor - 2 Sockets

  • 4th Generation Intel Xeon Scalable Processor
  • Max up to 350W
  • (2) LGA4677

Chipset

    Intel C741

Memory

    Supported DIMMs

  • 32x DIMMs, 8-channels per CPU
  • RDIMM/3DS RDIMM

    • RDIMM/LRDIMM

  • Up to 4,096GB RDIMM/3DS RDIMM DDR5
  • RDIMM DDR5 4800 MHz (1DPC) / 4400MHz (2DPC) / 3DS RDIMM DDR5 4400MHz (2DPC)

Drive Bays

  • (12) 2.5" hot-swap NVMe HDD/SSDs with (4) 2.5" hot-swap SATA 6Gb/s
  • SAS 12Gb/s /SATA 6Gb/s /NVMe

I/O Ports & Expansion Slots

    I/O Ports:

  • 1x USB 3.2 Gen.1 port (@ front)
  • 1x USB 3.2 Gen.1 port (@ rear)
  • COM: RJ45
  • VGA: 1x D-Sub 15-pin port
  • RJ-45: 2x 10 GbE ports + 1x dedicated GbEfor IPMI

    • Expansion Slots

  • 2x PCIe Gen5 x16 slots
  • Pre-Installed Riser: 1x M7132G79-R16-1F PCIe Gen.5 riser for 1x FH/HL PCIe Gen.5 x 16 slot
  • Pre-Installed Riser: 1x M7132G79-L16-1F PCIe Gen.5 riser for 1x FH/HL PCIe Gen.5 x 16 slot
  • Others: 1x PCIe Gen.5 x16 OCP 3.0 mezzanine slot

LAN

    Quantity

  • 2x 10 GbE ports via Intel X710-AT2 + 1x GbE dedicated for IPMI

    • PHY

  • Realtek RTL8211F

RAID Controller

    RAID 0/1/10/5 (Intel RSTe)

Power (1 + 1 Redundancy)

  • 1,000 Watts (100-127V AC input) / 1,200Watts (200-240V AC input) 80 Plus Platinum
  • AC 100-127V/13A / AC 200-240V/7A

Graphics

    Connector Type

  • D-Sub 15 pin

    • Resolution

  • Up to 1920 x 1200

    • Chipset

  • Aspeed AST2600

Chassis

    1U Rack

    Dimensions (D x W x H)

  • 31.1” x 17.26” x 1.69” (790mm x 438.5mm x 43mm)

Management

    AST2600 iKVM Feature

  • 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

    • AST2600 IPMI Feature

  • IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

Tyan Thunder CX GC79AB7132 B7132G79AE12HR-2T Server - Documentation

Tyan Thunder CX GC79AB7132 B7132G79AE12HR-2T Data Sheet Tyan Thunder CX GC79AB7132 B7132G79AE12HR-2T Quick Installation Guide Tyan Thunder CX GC79AB7132 B7132G79AE12HR-2T Service Engineer's Manual Tyan Thunder Intel Catalog Tyan AST2600 Configuration Guide
