Tyan Thunder CX GC79AB7132 B7132G79AE12HR Server

With support for up to 4TB of memory, the Tyan Thunder CX GC79AB7132 B7132G79AE12HR Server delivers some powerful performance for mainstream cloud applications. The system supports dual 4th generation Intel Xeon Scalable processors with 12x NVMe hot-swap NVMe U.2 storage bays up front. In addition to integrated dual GbE ports, 2x full-height, half-length PCIe 5.0 x16 slots provide opportunities for system expansion. Two optional NVMe M.2 drives can be installed on the system board to support the OS.
Configure

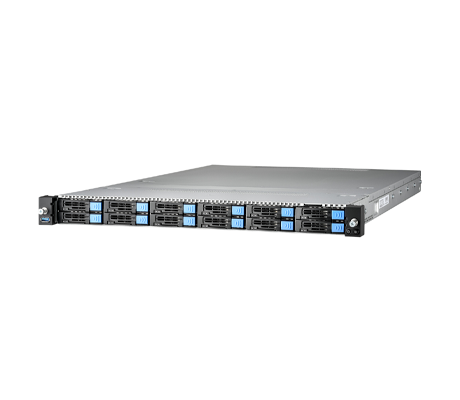

Tyan Thunder CX GC79AB7132 B7132G79AE12HR Server side view
Intel Partner Gold NVIDIA Elite Partner
Configure

Tyan Thunder CX GC79AB7132 B7132G79AE12HR Server - System Overview

Featuring high scalability, reliability and availability, the Tyan Thunder CX GC79AB7132 B7132G79AE12HR Server is designed for mainstream cloud applications. Target applications include web and mobile, big data and analytics, infrastructure as a service (IaaS), platform as a service (PaaS), and for virtual desktop infrastructure (VDI), to name a few. The system is powered by either dual redundant 1000W or 1200W 80 Plus Platinum power supply units.

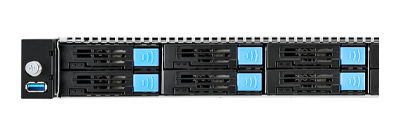

Tyan Thunder CX B7132G79AE12HR server front view Tyan Thunder CX B7132G79AE12HR server rear view

Tyan Thunder CX GC79AB7132 B7132G79AE12HR Server - Specifications

Processor - 2 Sockets

  • 4th Generation Intel Xeon Scalable Processor
  • Max up to 350W
  • (2) LGA4677

Chipset

    Intel C741

Memory

    Supported DIMMs

  • 32x DIMMs, 8-channels per CPU
  • RDIMM/3DS RDIMM

    • RDIMM/LRDIMM

  • Up to 4,096GB RDIMM/3DS RDIMM DDR5
  • Up to 4800/4400 MHz

Drive Bays

  • (12) 2.5" hot-swap NVMe HDD/SSDs with (4) 2.5" hot-swap SATA 6Gb/s
  • SAS 12Gb/s /SATA 6Gb/s /NVMe

I/O Ports & Expansion Slots

    I/O Ports:

  • 1x USB 3.2 Gen1 ports (@ front)
  • 1x USB3.2 Gen.1 port (@ rear)
  • COM: RJ45
  • VGA: 1x D-Sub 15-pin port
  • RJ-45: 2x 10GbE ports + 1x dedicated for IPMI

    • Expansion Slots

  • 2x PCIe Gen5 x16 slots
  • Pre-Installed Riser: 1x M7132G79-R16-1F PCIe Gen.5 riser for 1x FH/HL PCIe Gen.5 x 16 slot
  • Pre-Installed Riser: 1x M7132G79-L16-1F PCIe Gen.5 riser for 1x FH/HL PCIe Gen.5 x 16 slot
  • Others: 1x PCIe Gen.5 x16 OCP 3.0 mezzanine slot

LAN

    Quantity

  • 2x GbE ports via Controller Intel I210-AT + 1x GbE dedicated for IPMI

    • PHY

  • Realtek RTL8211F

RAID Controller

    RAID 0/1/10/5 (Intel RSTe)

Power (1 + 1 Redundancy)

  • 1,000 Watts (100-127V AC input) / 1,200Watts (200-240V AC input) 80 Plus Platinum
  • AC 100-127V/13A / AC 200-240V/7A

Graphics

    Connector Type

  • D-Sub 15 pin

    • Resolution

  • Up to 1920 x 1200

    • Chipset

  • Aspeed AST2600

Chassis

    1U Rack

    Dimensions (D x W x H)

  • 31.1” x 17.26” x 1.69” (790mm x 438.5mm x 43mm)

Management

    AST2600 iKVM Feature

  • 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

    • AST2600 IPMI Feature

  • IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

Tyan Thunder CX GC79AB7132 B7132G79AE12HR Server - Documentation

Tyan Thunder CX GC79AB7132 B7132G79AE12HR Data Sheet Tyan Thunder CX GC79AB7132 B7132G79AE12HR Quick Installation Guide Tyan Thunder CX GC79AB7132 B7132G79AE12HR Service Engineer's Manual Tyan Thunder Intel Catalog Tyan AST2600 Configuration Guide
