Tyan Thunder CX TS70AB7136 B7136T70AV12E8HR-2T Server

The 2U Tyan Thunder CX TS70AB7136 B7136T70AV12E8HR-2T server features 16x DDR5 DIMM slots, 5x PCIe 5.0 slots, 1x OCP v3.0 LAN mezzanine slot, and 2x NVMe M.2 ports. The dual-socket platform is a warm storage server powered by 4th Generation Intel Xeon Scalable processors with up to 60 cores each and a maximum TDP of up to 350W. With 8x memory channels per CPU, the system can accommodate up to 2TB DDR5 RAM with speeds of up to 4800MHz.
Configure

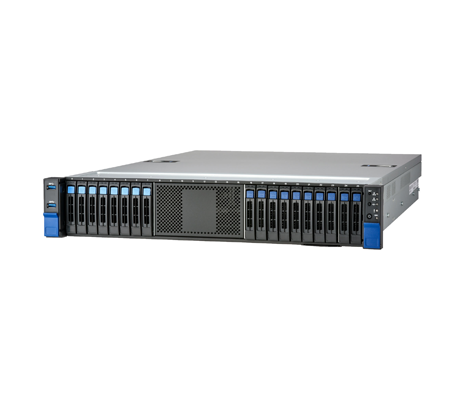

Tyan Thunder CX TS70AB7136 B7136T70AV12E8HR-2T Server side view
Intel Partner Gold NVIDIA Elite Partner
Configure

Tyan Thunder CX TS70AB7136 B7136T70AV12E8HR-2T Server - System Overview

A total of 20x drive bays can be configured on the B7136T70AV12E8HR-2T server. The front panel holds 8x NVMe U.2 bays with light blue tabs and 10x 2.5” SATA/SAS drive bays with dark blue tabs, meanwhile the rear supports an additional 2x 2.5” SATA SSD drive bays. Dual redundant 1000W or 1200W PLUS Platinum power supply units (PSU) can be accessed through the rear, as well as 2x 10GbE ports and 1x GbE port dedicated for IPMI. There are also two slots on the system board that can be used to install 2x NVMe M.2 storage devices. This system can be managed by the Onboard Aspeed AST2600 chipset.

Tyan Thunder CX B7136T70AV12E8HR-2T server front view Tyan Thunder CX B7136T70AV12E8HR-2T server rear view

Tyan Thunder CX TS70AB7136 B7136T70AV12E8HR-2T Server - Specifications

Processor - 2 Sockets

  • 4th Generation Intel Xeon Scalable Processor
  • Max up to 350W
  • (2) LGA4677

Chipset

    Intel C741

Memory

    Supported DIMMs

  • 16x DIMMs, 8-channels per CPU
  • RDIMM/3DS RDIMM

    • RDIMM/LRDIMM

  • Up to 2,048GB RDIMM/3DS RDIMM DDR5
  • Up to 4800/4400 MHz

Drive Bays

  • 8x NVMe U.2 hot-swap
  • 12x 2.5" Hot-Swap SAS/SATA HDDs
  • SAS 12Gb/s /SATA 6Gb/s /NVMe

I/O Ports & Expansion Slots

    I/O Ports:

  • 2x USB 3.2 Gen1 ports (@ rear)
  • COM: 1x DB-9 COM port
  • VGA: 1x D-Sub 15-pin port
  • RJ-45: 2x 10GbE ports + 1x dedicated GbE for IPMI

    • Expansion Slots

  • (1) PCIe Gen.5 x4 slot / (2) PCIe Gen.5 x8 slots / (2) PCIe Gen.5 x16 slots
  • Pre-Installed Riser: M7136T70-R24-2F riser card for for (1) FH/HL PCIe 5.0 x16 + (1) FH/HL PCIe 5.0 x8 slots
  • Pre-Installed Riser: M7136T70-L28-3F riser card for (1) FH/HL PCIe 5.0 x16 + (2) FH/HL PCIe 5.0 x8(1x w/ x4 link) slots
  • Others: 1x PCIe Gen.5 x16 OCP 3.0 mezzanine slot

LAN

    Quantity

  • 2x 10GbE ports + 1x GbE dedicated for IPMI

    • PHY

  • Realtek RTL8211F

RAID Controller

    RAID 0/1/10/5 (Intel RSTe)

Power (1 + 1 Redundancy)

  • 1,000 Watts (100-127V AC input) / 1,200Watts (200-240V AC input) 80 Plus Platinum
  • AC 100-127V/13A / AC 200-240V/7A

Graphics

    Connector Type

  • D-Sub 15 pin

    • Resolution

  • Up to 1920 x 1200

    • Chipset

  • Aspeed AST2600

Chassis

    1U Rack

    Dimensions (D x W x H)

  • 27.56" x 17.26" x 3.42" (700 x 438.5 x 87mm)

Management

    AST2600 iKVM Feature

  • 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

    • AST2600 IPMI Feature

  • IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

Tyan Thunder CX TS70AB7136 B7136T70AV12E8HR-2T Server - Documentation

Tyan Thunder CX TS70AB7136 B7136T70AV12E8HR-2T Data Sheet Tyan Thunder CX TS70AB7136 B7136T70AV12E8HR-2T Quick Installation Guide Tyan Thunder CX TS70AB7136 B7136T70AV12E8HR-2T Service Engineer's Manual Tyan Thunder Intel Catalog Tyan AST2600 Configuration Guide
