Tyan Thunder CX TS70AB7136 B7136T70AV12E8HR Server

With up to 20x drive bays, the Tyan Thunder CX TS70AB7136 B7136T70AV12E8HR server can be configured to support hot-swap SAS, SATA, and NVMe drive bays. 8x NVMe U.2 bays and 10x 2.5” SATA/SAS bays can be accessed through the front of the system, while 2x 2.5” SATA SSD drive bays can be accessed through the rear. The 2U system features 16x DDR5 memory module slots supporting speeds of up to 4800MHz and a maximum memory capacity of up to 2TB. This machine is powered by dual 4th Gen Intel Xeon Scalable processors with up to 60 cores and 120 threads. Each Sapphire Rapids CPU has an 8-channel memory architecture and the system is compatible with a TDP of up to 350W.
Configure

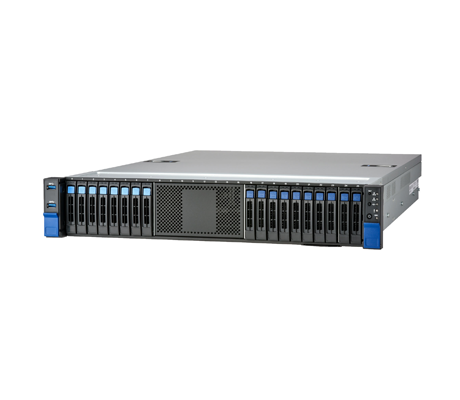

Tyan Thunder CX TS70AB7136 B7136T70AV12E8HR Server side view
Intel Partner Gold NVIDIA Elite Partner
Configure

Tyan Thunder CX TS70AB7136 B7136T70AV12E8HR Server - System Overview

In addition to the drive bays on the exterior, the dual-socket platform this warm storage server offers 2x NVMe M.2 2280 slots on the motherboard. Expanding the system’s capabilities are 2x pre-installed Tyan riser cards with 5x PCIe 5.0 slots featuring x4, x8, and x16 interfaces. Similarly, the B7136T70AV12E8HR has a single PCIe Gen5 x16 OCP 3.0 mezzanine slot plus two integrated 10GbE ports. To manage the system, the onboard Aspeed AST2600 IPMI 2.0 compliant baseboard management controller provides remote access to the system. Designed for cloud applications, this flexible platform features scalability, high-availability, energy-efficiency, and high-speed network connectivity with the ability to support multiple virtual machines.

Tyan Thunder CX B7136T70AV12E8HR server front view Tyan Thunder CX B7136T70AV12E8HR server rear view

Tyan Thunder CX TS70AB7136 B7136T70AV12E8HR Server - Specifications

Processor - 2 Sockets

  • 4th Generation Intel Xeon Scalable Processor
  • Max up to 350W
  • (2) LGA4677

Chipset

    Intel C741

Memory

    Supported DIMMs

  • 16x DIMMs, 8-channels per CPU
  • RDIMM/3DS RDIMM

    • RDIMM/LRDIMM

  • Up to 2,048GB RDIMM/3DS RDIMM DDR5
  • Up to 4800/4400 MHz

Drive Bays

  • 8x NVMe U.2
  • 12x 3.5"/2.5" Hot-Swap SAS/SATA HDDs
  • SAS 12Gb/s /SATA 6Gb/s /NVMe

I/O Ports & Expansion Slots

    I/O Ports:

  • 2x USB 3.2 Gen1 ports (@ rear)
  • COM: 1x DB-9 COM port
  • VGA: 1x D-Sub 15-pin port
  • RJ-45: 1x GbE port dedicated for IPMI

    • Expansion Slots

  • (1) PCIe Gen.5 x4 slot / (2) PCIe Gen.5 x8 slots / (2) PCIe Gen.5 x16 slots
  • Pre-Installed Riser: M7136T70-R24-2F riser card for for (1) FH/HL PCIe 5.0 x16 + (1) FH/HL PCIe 5.0 x8 slots
  • Pre-Installed Riser: M7136T70-L28-3F riser card for (1) FH/HL PCIe 5.0 x16 + (2) FH/HL PCIe 5.0 x8(1x w/ x4 link) slots
  • Others: 1x PCIe Gen.5 x16 OCP 3.0 mezzanine slot

LAN

    Quantity

  • 1x GbE ports dedicated for IPMI

    • PHY

  • Realtek RTL8211F

RAID Controller

    RAID 0/1/10/5 (Intel RSTe)

Power (1 + 1 Redundancy)

  • 1,000 Watts (100-127V AC input) / 1,200Watts (200-240V AC input) 80 Plus Platinum
  • AC 100-127V/13A / AC 200-240V/7A

Graphics

    Connector Type

  • D-Sub 15 pin

    • Resolution

  • Up to 1920 x 1200

    • Chipset

  • Aspeed AST2600

Chassis

    1U Rack

    Dimensions (D x W x H)

  • 27.56" x 17.26" x 3.42" (700 x 438.5 x 87mm)

Management

    AST2600 iKVM Feature

  • 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

    • AST2600 IPMI Feature

  • IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

Tyan Thunder CX TS70AB7136 B7136T70AV12E8HR Server - Documentation

Tyan Thunder CX TS70AB7136 B7136T70AV12E8HR Data Sheet Tyan Thunder CX TS70AB7136 B7136T70AV12E8HR Quick Installation Guide Tyan Thunder CX TS70AB7136 B7136T70AV12E8HR Service Engineer's Manual Tyan Thunder Intel Catalog Tyan AST2600 Configuration Guide
