Tyan Thunder CX TS70B7136 B7136T70V10E4HR-HE Storage Server

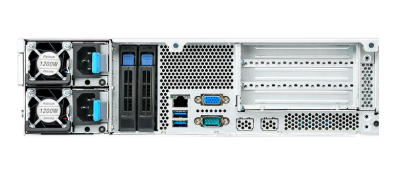

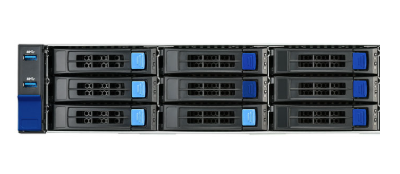

Both processors support 8x memory channels and RDIMMs/3DS RDIMMs, but only 5th Gen CPUs feature speeds of up to 5600MHz in a 1x DIMM per CPU configuration. This Intel-based platform supports 12x 3.5-inch drive bays on the front panel that includes 8x SATA hot-swap drive bays and 4x NVMe U.2 drive bays. On the rear, there are 2x 2.5-inch hot-swap SATA drive bays. For more storage, or to boot the OS, there are dual NVMe M.2 PCIe 4.0 slots on the system board for 2280 form factor cards. A dedicated 1000Base-T IPMI port on the rear of the chassis provides for remote management of the system.

Two pre-installed riser cards on the Tyan TS70B7136 B7136T70V10E4HR-HE support a full-height, half-length PCIe 5.0 x16 slot and a full-height, half-length PCIe 5.0 x8 slot. The other riser holds 1x full-height, half-length PCIe 5.0 x16 slot and 2x full-height, half-length PCIe 5.0 x8 slots. A dedicated PCIe Gen5 x16 OCP 3.0 slot will support an optional mezzanine card. Power is supplied by a 1+1 redundant 1300W redundant 80 PLUS Titanium PSU.

The dedicated 1 GbE port on the rear of the chassis provides access to the Intelligent Platform Management Interface (IPMI), enabling both local and remote system management. With remote access to the system, Administrators can monitor critical hardware metrics such as CPU temperature, system status, power consumption, component inventory, and fan speeds.
