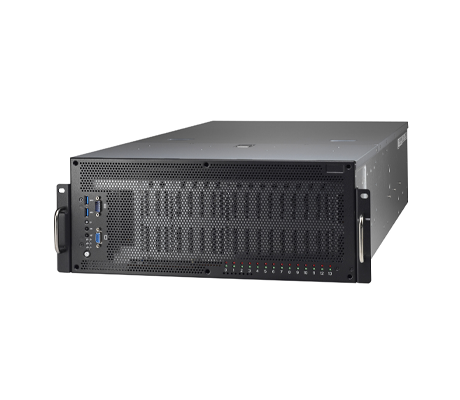

Tyan Thunder HX FA77B7119 B7119F77V10E4HR-2T55-N Server

Description

The Tyan Thunder HX FA77B7119 B7119F77V10E4HR-2T55-N server is differentiated from the other chassis in the Tyan Thunder HX FA77B7119 family by support for up to 14x storage drives that include up to 4x NVMe U.2 drives for added resilience and speed. The server offers support for up to 20x single-width GPUs or 10x double-width GPUs and can be loaded with up to 24x DIMMs for a total memory capacity of up to 3TB.

Other FA77B7119 Chassis Configurations

Tyan Thunder HX FA77B7119 B7119F77V10E4HR-2T-N
10x 2.5" SATA 6G + 4x 2.5" NVMe U.2 Hotswap Bays

Tyan Thunder HX FA77B7119 B7119F77V14HR-2T-N
14x 2.5" SATA 6G Hotswap Bays

Tyan Thunder HX FA77B7119 B7119F77V4HR-2T-N
4x 3.5"/2.5" SATA 6G Hotswap Bays

Tyan Thunder HX FA77B7119 B7119F77V14HR-2T55-N
14x 2.5" SATA 6G Hotswap Bays

Tyan Thunder HX FA77B7119 B7119F77V4HR-2T55-N
4x 3.5"/2.5" SATA 6G Hotswap Bays

Performance

You can install one or two Intel Xeon Scalable processors from the first- or second-generation with a TDP of up to 205W and up to 28 cores per CPU. However, when one CPU is installed, less memory is supported. Each processor supports six memory channels and up to 12x memory module slots for 24x total active memory module slots with both processors installed.

Memory

With both processors installed, the B7119F77V10E4HR-2T55-N platform has 24x active memory module slots. 12x memory module slots are allocated to each processor and can support up to 3TB of memory, depending on the type of memory modules. Registered, load-reduced, non-volatile, and 3DS registered and load reduced DDR4 memory modules are supported on this system. The RDIMM and LRDIMM 3DS modules provide the highest capacity at up to 3,072GB. Standard RDIMMs and LRDIMMs will provide up to 1,536GB of memory. Administrators must use 2nd generation Intel CPUs to take advantage of the fastest 2933MHz memory speed, and only 2nd generation Intel Xeon processors are compatible with Intel Optane DC Persistent memory modules.

Storage

Up to 14x 2.5-inch hot-swap SAS or SATA HDDs or SSDs are supported on this system offering 6Gb/s natively, and SAS at 12Gb/s access speeds with a separate HD controller installed. The Tyan B7119F77V10E4HR-2T55-N server can be configured with 10x 2.5” SATA or SAS drives plus 4x NVMe U.2 hot swap drives.

Expansion

Up to 21x PCIe slots are supported on an I/O bridge board plugged into the main motherboard. Up to 10x double-width NVIDIA Tesla GPUs are supported, or 20x single-width NVIDIA Tesla GPUs. With all slots outfitted with GPUs, this leaves one PCIe slot empty for a single x16 PCIe Gen3 slot in the middle of all PCIe lanes that can support additional high-speed IO with an Intel LAN controller. There is also an additional PCIe Gen3 x16 slot for a pre-installed Tyan mezzanine card, which supports a single HD/RAID SAS controller with two x4 mini-SAS connectors for optional NVMe drive support.

Management

The onboard base management controller (BMC) with IPMI 2.0 manages the system’s processor, memory and other hardware at-chassis or remotely. Administrators of the Tyan FA77B7119 B7119F77V10E4HR-2T55-N server gain access through the onboard Aspeed AST2500 feature, which provides a simple and effective way to monitor the system from any location using a standard browser.

Summary

Outfitted with 24x DIMMs and dual Intel Xeon Scalable processors from the first- or second-generation, the Tyan Thunder HX FA77B7119 B7119F77V10E4HR-2T55-N server puts the latest technology to work to provide the best performance. With support for up to 20x single-width NVIDIA GPUs or 10x double-width NVIDIA GPUs, the server can be remotely managed to deliver ongoing productivity. This platform is designed specifically for high-performance computing (HPC) and general-purpose GPU enhanced applications like machine learning and deep learning.
