Tyan Thunder HX FT65TB7130 B7130F65TV10H-2T-G GPU Server Tower
Designed to support multiple GPU cards, the Tyan Thunder HX FT65TB7130 B7130F65TV10H-2T-G GPU server Tower features dual 4th or 5th generation Intel Xeon Scalable processors. With a maximum thermal design power (TDP) of 250W, it can accommodate CPUs with up to 32 cores. The CPUs deliver 8-channel memory, among 16x memory module slots for a total of 2TB of DDR5 memory when all slots are utilized.
Tyan Thunder HX FT65TB7130 B7130F65TV10H-2T-G GPU Server Tower - System Overview

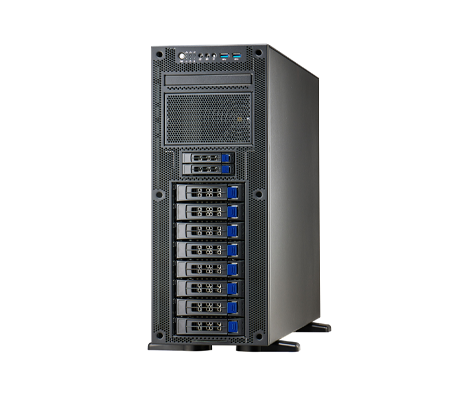

When powered by 5th generation CPUs, the maximum memory speeds can reach 5600MHz, optimizing performance for even the most demanding workloads. The Thunder HX FT65TB7130 B7130F65TV10H-2T-G is equipped with a front panel that includes 2x hot-swap 2.5” SATA HDD/SSD drive bays positioned above 8x hot-swap 3.5” SAS/SATA HDD/SSD bays. Additionally, it supports 1x M.2 PCIe 3.0 x4 card with a 2280 form factor. The platform offers up to 5x PCIe slots directly integrated into the server board: 2x PCIe Gen5 x8 slots and 3x PCIe Gen5 x16 slots. It can support 2x full-height, double-wide GPUs using two of the PCIe 5.0 x16 slots and can accommodate a wide array of high-performance cards.
For enhanced monitoring and control, the rear panel is equipped with 2x 10GbE ports and 1x GbE port dedicated to management through the Intelligent Platform Management Interface (IPMI). The onboard Aspeed AST2600 baseboard management controller can help administrators manage the Thunder HX B7130F65TV10H-2T-G performance and health both locally and remotely. Cooling is supported with three easy-swap fans positioned just behind the drive bays. Users can choose between an 80 Plus Platinum 1500W power supply unit (PSU) or an 80 Plus Gold 2000W PSU, providing flexibility based on power requirements.
Tyan Thunder HX FT65TB7130 B7130F65TV10H-2T-G GPU Server Tower - Specifications
Compose the exact configuration you looking for to build the perfect server. Just add components and quantities you would like to incorporate into the system
Get a quote for Tyan Thunder HX FT65TB7130 B7130F65TV10H-2T-G GPU Server Tower
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
