Tyan Thunder HX TS75AB7132 B7132T75AV10E16HR Server

Outfitted with 2x Intel Xeon Scalable processors from the 4th generation, the Tyan Thunder HX TS75AB7132 B7132T75AV10E16HR server features 26x front-accessible drive bays. The system can be configured with 10x 2.5" hot-swap SAS or SATA HDDs, plus 16x NVMe U.2 drives. Under the hood, the platform supports 2x NVMe M.2 22110 or 2280 slots for additional storage or to boot the operating system. It can be managed remotely using the AST2600 IPMI 2.0 compliant baseboard management controller.
Configure

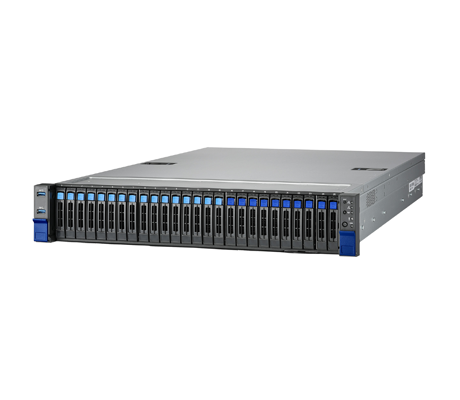

Tyan Thunder HX TS75AB7132 B7132T75AV10E16HR Server side view
Intel Partner Gold NVIDIA Elite Partner
Configure

Tyan Thunder HX TS75AB7132 B7132T75AV10E16HR Server - System Overview

The 2U B7132T75AV10E16HR server has 32x slots for DDR5 memory modules with a maximum memory capacity of 4TB and supporting speeds of up to 4800MHz. There are 4x pre-installed Tyan riser cards that support 1x PCIe Gen.5 x4 slot and 4x PCIe Gen.5 x16 slots. In addition, this machine offers 1x PCIe Gen5 x16 OCP 3.0 mezzanine slot, 2x SATA-DOM connectors, plus 2x GbE ports and 1x GbE port dedicated for the integrated platform management interface.

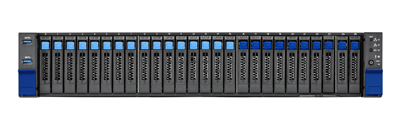

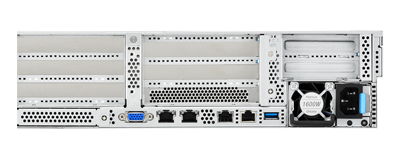

Tyan Thunder HX B7132T75AV10E16HR server front view Tyan Thunder HX B7132T75AV10E16HR server rear view

Tyan Thunder HX TS75AB7132 B7132T75AV10E16HR Server - Specifications

Processor - 2 Sockets

  • 4th Generation Intel Xeon Scalable Processor
  • Max up to 350W
  • (2) LGA4677

Chipset

    Intel C741

Memory

    Supported DIMMs

  • 32x DIMMs, 8-channels per CPU
  • RDIMM/3DS RDIMM

    • RDIMM/LRDIMM

  • Up to 4,096GB RDIMM/3DS RDIMM DDR5
  • Up to 4800/4400 MHz

Drive Bays

  • 10x 2.5" Hot-Swap SAS/SATA HDDs
  • 16x NVMe 2.5" U.2
  • SAS 12Gb/s /SATA 6Gb/s /NVMe

I/O Ports & Expansion Slots

    I/O Ports:

  • 1x USB 3.2 Gen1 ports (@ rear)/ 2x USB 3.2 Gen1 ports (@ front)
  • COM: RJ45
  • VGA: 1x D-Sub 15-pin port
  • RJ-45: 2x GbE ports + 1x dedicated GbE for IPMI

    • Expansion Slots

  • (1) PCIe Gen.5 x4 slot / (4) PCIe Gen.5 x16 slots
  • Pre-Installed Riser: M7132T75-L20-2F riser card for (1) FH/10.5"L/DW PCIe 5.0 x16 + (1) FH/HL PCIe 5.0 x4 slots
  • Pre-Installed Riser: M7132T75-L16-1F riser card for (1) HH/HL PCIe Gen.5 x 16 slot
  • Pre-Installed Riser: M7132T75-R16-1L riser card for (1) HH/HL PCIe Gen.5 x 16 slot
  • Pre-Installed Riser: M7132T75-R16-1F riser card for (1) FH/10.5"L/DW PCIe 5.0 x16 slot
  • Others: 1x PCIe Gen.5 x16 OCP 3.0 mezzanine slot

LAN

    Quantity

  • 2x GbE ports + 1x GbE dedicated for IPMI

    • PHY

  • Realtek RTL8211F

RAID Controller

    RAID 0/1/10/5 (Intel RSTe)

Power (1 + 1 Redundancy)

  • 1,000 Watts (100-127Vac input) / 2,000 Watts (200-240Vac input)
  • AC 100-127V/13A / AC 200-240V/7A

Graphics

    Connector Type

  • D-Sub 15 pin

    • Resolution

  • Up to 1920 x 1200

    • Chipset

  • Aspeed AST2600

Chassis

    1U Rack

    Dimensions (D x W x H)

  • 29.56" x 17.26" x 3.43" (750.8 x 438.4 x 87mm)

Management

    AST2600 iKVM Feature

  • 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

    • AST2600 IPMI Feature

  • IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

Tyan Thunder HX TS75AB7132 B7132T75AV10E16HR Server - Documentation

Tyan Thunder HX TS75AB7132 B7132T75AV10E16HR Data Sheet Tyan Thunder HX TS75AB7132 B7132T75AV10E16HR Quick Installation Guide Tyan Thunder HX TS75AB7132 B7132T75AV10E16HR Service Engineer's Manual Tyan Thunder Intel Catalog Tyan AST2600 Configuration Guide
