Tyan Thunder HX TS75B7132 B7132T75E8HR-2T Server

Ideal for demanding applications, the Tyan Thunder HX TS75B7132 B7132T75E8HR-2T Server operates with two Intel Xeon Scalable processors from the 4th generation. These CPUs support 8 to 60 cores each. The platform support a maximum thermal design point of up to 350W. Similarly, the Intel processors offer 8-channel memory architecture and 32x DDR5 DIMM slots for up to 4TB of RAM. The server supports Registered (RDIMM) and 3DS Registered (3DS RDIMM) memory modules with speeds of up to 4800MHz.
Configure
Tyan Thunder HX TS75B7132 B7132T75E8HR-2T Server side view
Intel Partner Gold NVIDIA Elite Partner
Configure

Tyan Thunder HX TS75B7132 B7132T75E8HR-2T Server - System Overview

Featuring 8x 3.5" SATA, SAS, or NVMe U.2 hot-swap drive bays up front, the system also supports an additional 2x NVMe M.2 slots with a PCIe Gen4 interface. 22110 or 2280 size M.2 drives can be inserted on the system board to support the operating system. The B7132T75E8HR-2T server has plenty of expansion options such as 4x pre-installed Tyan riser cards for 1x PCIe Gen5 x4 slot and 4x PCIe Gen5 x16 slots. The system is powered by two redundant 1000W or 1600W 80 Plus Platinum power supply units and features dual 10GbE ports. This is a high-performance system that offers best-in-class performance to support a number of business applications.

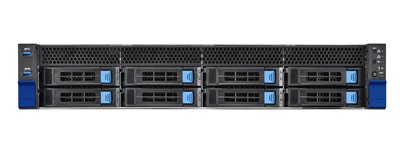

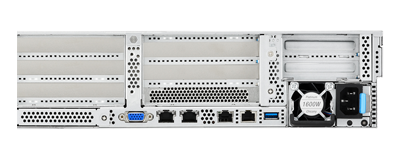

Tyan Thunder HX B7132T75E8HR-2T server front view Tyan Thunder HX B7132T75E8HR-2T server rear view

Tyan Thunder HX TS75B7132 B7132T75E8HR-2T Server - Specifications

Processor - 2 Sockets

  • 4th Generation Intel Xeon Scalable Processor
  • Max up to 350W
  • (2) LGA4677

Chipset

    Intel C741

Memory

    Supported DIMMs

  • 32x DIMMs, 8-channels per CPU
  • RDIMM/3DS RDIMM

    • RDIMM/LRDIMM

  • Up to 4,096GB RDIMM/3DS RDIMM DDR5
  • Up to 4800/4400 MHz

Drive Bays

  • 8x 3.5" Hot-Swap HDD/SSDs
  • SAS 12Gb/s /SATA 6Gb/s /NVMe U.2

I/O Ports & Expansion Slots

    I/O Ports:

  • 1x USB 3.2 Gen1 ports (@ rear)/ 2x USB 3.2 Gen1 ports (@ front)
  • COM: RJ45
  • VGA: 1x D-Sub 15-pin port
  • RJ-45: 2x 10 GbE ports via Intel X710-AT2 + 1x dedicated GbE for IPMI

    • Expansion Slots

  • (1) PCIe Gen.5 x4 slot / (4) PCIe Gen.5 x16 slots
  • Pre-Installed Riser: M7132T75-L20-2F riser card for (1) FH/10.5"L/DW PCIe 5.0 x16 + (1) FH/HL PCIe 5.0 x4 slots
  • Pre-Installed Riser: M7132T75-L16-1F riser card for (1) HH/HL PCIe Gen.5 x 16 slot
  • Pre-Installed Riser: M7132T75-R16-1L riser card for (1) HH/HL PCIe Gen.5 x 16 slot
  • Pre-Installed Riser: M7132T75-R16-1F riser card for (1) FH/10.5"L/DW PCIe 5.0 x16 slot
  • Others: 1x PCIe Gen.5 x16 OCP 3.0 mezzanine slot

LAN

    Quantity

  • 2x 10GbE ports + 1x GbE dedicated for IPMI

    • PHY

  • Realtek RTL8211F

RAID Controller

    RAID 0/1/10/5 (Intel RSTe)

Power (1 + 1 Redundancy)

  • 1,000 Watts (100-127V AC input) / 1,600 Watts (200-240V AC input)
  • AC 100-127V/13A / AC 200-240V/7A

Graphics

    Connector Type

  • D-Sub 15 pin

    • Resolution

  • Up to 1920 x 1200

    • Chipset

  • Aspeed AST2600

Chassis

    1U Rack

    Dimensions (D x W x H)

  • 29.56" x 17.26" x 3.43" (750.8 x 438.4 x 87mm)

Management

    AST2600 iKVM Feature

  • 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

    • AST2600 IPMI Feature

  • IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

Tyan Thunder HX TS75B7132 B7132T75E8HR-2T Server - Documentation

Tyan Thunder HX TS75B7132 B7132T75E8HR-2T Data Sheet Tyan Thunder HX TS75B7132 B7132T75E8HR-2T Quick Installation Guide Tyan Thunder HX TS75B7132 B7132T75E8HR-2T Service Engineer's Manual Tyan Thunder Intel Catalog Tyan AST2600 Configuration Guide
