Tyan Thunder HX TS75B7132 B7132T75E8HR Server

The Tyan Thunder HX TS75B7132 B7132T75E8HR Server can be used for demanding workloads like virtualization and high-performance computing. that require. The 2U, dual socket system runs on 4th generation Intel Xeon Scalable processors with a maximum TDP of up to 350W. With 8 to 60 cores each, they also support NVMe drives, DDR5 DIMMs, and PCIe 5.0. The platform comes equipped with dual GbE ports and is powered by two redundant 1000W or 1600W 80 Plus Platinum power supply units.
Configure

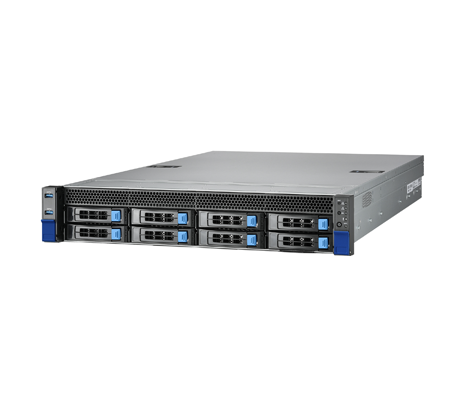

Tyan Thunder HX TS75B7132 B7132T75E8HR Server side view
Intel Partner Gold NVIDIA Elite Partner
Configure

Tyan Thunder HX TS75B7132 B7132T75E8HR Server - System Overview

The B7132T75E8HR holds 32x DDR5 memory module slots with up to 4TB of memory and speeds of up to 4800MHz. The front panel offers 8x 3.5" SATA, SAS, or NVMe U.2 hot-swap drive bays plus an additional 2x NVMe PCIe Gen4 M.2 slots supporting 22110 or 2280 cards. 4x pre-installed riser cards on the server deliver 1x PCIe Gen5 x4 slot and 4x PCIe Gen5 x16 slots. The chassis also supports a single PCIe Gen5 x16 OCP 3.0 mezzanine slot and management software supported by the onboard Aspeed AST2600 chipset and the IPMI 2.0 baseboard management controller. Part of Tyan’s HX lineup, this system is designed for high-performance computing and offer best-in-class server technology

Tyan Thunder HX B7132T75E8HR server front view Tyan Thunder HX B7132T75E8HR server rear view

Tyan Thunder HX TS75B7132 B7132T75E8HR Server - Specifications

Processor - 2 Sockets

  • 4th Generation Intel Xeon Scalable Processor
  • Max up to 350W
  • (2) LGA4677

Chipset

    Intel C741

Memory

    Supported DIMMs

  • 32x DIMMs, 8-channels per CPU
  • RDIMM/3DS RDIMM

    • RDIMM/LRDIMM

  • Up to 4,096GB RDIMM/3DS RDIMM DDR5
  • Up to 4800/4400 MHz

Drive Bays

  • 8x 3.5" Hot-Swap HDD/SSDs
  • SAS 12Gb/s /SATA 6Gb/s /NVMe

I/O Ports & Expansion Slots

    I/O Ports:

  • 1x USB 3.2 Gen1 ports (@ rear)/ 2x USB 3.2 Gen1 ports (@ front)
  • COM: RJ45
  • VGA: 1x D-Sub 15-pin port
  • RJ-45: 2x GbE ports + 1x dedicated GbE for IPMI

    • Expansion Slots

  • (1) PCIe Gen.5 x4 slot / (4) PCIe Gen.5 x16 slots
  • Pre-Installed Riser: M7132T75-L20-2F riser card for (1) FH/10.5"L/DW PCIe 5.0 x16 + (1) FH/HL PCIe 5.0 x4 slots
  • Pre-Installed Riser: M7132T75-L16-1F riser card for (1) HH/HL PCIe Gen.5 x 16 slot
  • Pre-Installed Riser: M7132T75-R16-1L riser card for (1) HH/HL PCIe Gen.5 x 16 slot
  • Pre-Installed Riser: M7132T75-R16-1F riser card for (1) FH/10.5"L/DW PCIe 5.0 x16 slot
  • Others: 1x PCIe Gen.5 x16 OCP 3.0 mezzanine slot

LAN

    Quantity

  • 2x GbE ports + 1x GbE dedicated for IPMI

    • PHY

  • Realtek RTL8211F

RAID Controller

    RAID 0/1/10/5 (Intel RSTe)

Power (1 + 1 Redundancy)

  • 1,000 Watts (100-127Vac input) / 1,600 Watts (200-240Vac input)
  • AC 100-127V/13A / AC 200-240V/7A

Graphics

    Connector Type

  • D-Sub 15 pin

    • Resolution

  • Up to 1920 x 1200

    • Chipset

  • Aspeed AST2600

Chassis

    1U Rack

    Dimensions (D x W x H)

  • 29.56" x 17.26" x 3.43" (750.8 x 438.4 x 87mm)

Management

    AST2600 iKVM Feature

  • 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

    • AST2600 IPMI Feature

  • IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
