Tyan Thunder SX TS70B7136 B7136T70V10E4HR-2T Server

The front panel offers 12x hot-swap SFF or LFF drive bays, 4x of which support optional NVMe U.2 drives. On the back of the chassis there are 2x SATA SFF drives suitable for booting the operating system. At 2U, the Tyan Thunder SX TS70B7136 B7136T70V10E4HR-2T server is a two-socket system intended for cloud storage. It runs on dual 4th Generation Intel Xeon Scalable processors with 8 to 60 cores each and a TDP of up to 350W. 8x memory module slots for each CPU, provide 16x active DIMM slots with both CPUs installed. With all slots are filled with 128GB modules, the system supports up to 2TB of memory with DDR5 RDIMMs or 3DS RDIMMs running at speeds of up to 4800MHz.
Configure

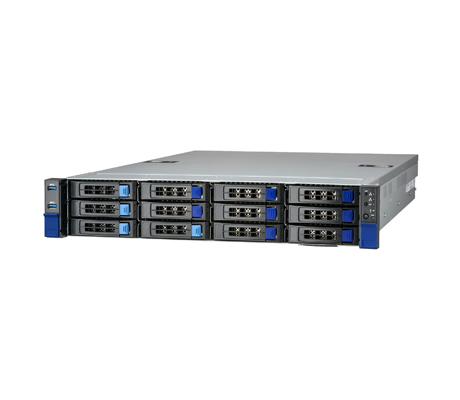

Tyan Thunder SX TS70B7136 B7136T70V10E4HR-2T Server side view
Intel Partner Gold NVIDIA Elite Partner
Configure

Tyan Thunder SX TS70B7136 B7136T70V10E4HR-2T Server - System Overview

5x expansion slots are supported by 2x pre-installed riser cards. These slots include 1x PCIe Gen.5 x4 slot, 2x PCIe Gen.5 x8 slots, and 2x PCIe Gen.5 x16 slots. Similarly, the system also offers 1x PCIe Gen5 x16 mezzanine slot for an OCP 3.0 networking card. 2x PCIe 4.0 slots on the system board can support NVMe M.2 drives with a length of 2280. The B7136T70V10E4HR-2T Server features including 2x 10GbE networking ports and 1x GbE port dedicated for IPMI. Overall, this warm storage platform is a solid option for big data or cloud storage servers, offering lots of flexibility for performance applications.

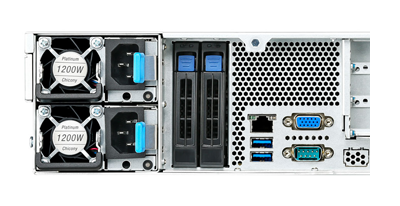

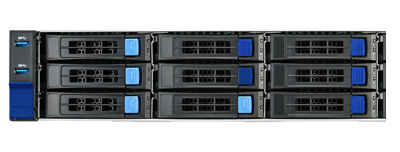

Tyan Thunder SX B7136T70V10E4HR-2T server front view Tyan Thunder SX B7136T70V10E4HR-2T server rear view

Tyan Thunder SX TS70B7136 B7136T70V10E4HR-2T Server - Specifications

Processor - 2 Sockets

  • 4th Generation Intel Xeon Scalable Processor
  • Max up to 350W
  • (2) LGA4677

Chipset

    Intel C741

Memory

    Supported DIMMs

  • 16x DIMMs, 8-channels per CPU
  • RDIMM/3DS RDIMM

    • RDIMM/LRDIMM

  • Up to 2,048GB RDIMM/3DS RDIMM DDR5
  • Up to 4800/4400 MHz

Drive Bays

  • 2x 2.5" Hot-Swap HDD/SSDs (@ rear)
  • 12x 3.5"/2.5" Hot-Swap HDD/SSDs w/ 4x NVMe U.2
  • SAS 12Gb/s /SATA 6Gb/s /NVMe U.2

I/O Ports & Expansion Slots

    I/O Ports:

  • 2x USB 3.2 Gen1 ports (@ rear)
  • COM: 1x DB-9 COM port
  • VGA: 1x D-Sub 15-pin port
  • RJ-45: 2x 10GbE ports + 1x dedicated GbE for IPMI

    • Expansion Slots

  • 1x PCIe Gen.5 x4 slot / 2x PCIe Gen.5 x8 slots / 2x PCIe Gen.5 x16 slots
  • Pre-Installed Riser: M7136T70-R24-2F riser card for for (1) FH/HL PCIe 5.0 x16 + (1) FH/HL PCIe 5.0 x8 slots
  • Pre-Installed Riser: M7136T70-L28-3F riser card for (1) FH/HL PCIe 5.0 x16 + (2) FH/HL PCIe 5.0 x8(1x w/ x4 link) slots
  • Others: 1x PCIe Gen.5 x16 OCP 3.0 mezzanine slot

LAN

    Quantity

  • 2x 10GbE ports + 1x GbE dedicated for IPMI

    • PHY

  • Realtek RTL8211F

RAID Controller

    RAID 0/1/10/5 (Intel RSTe)

Power (1 + 1 Redundancy)

  • 1,000 Watts (100-127Vac input) / 1,200 Watts (200-240Vac input)
  • AC 100-127V/13A / AC 200-240V/7A

Graphics

    Connector Type

  • D-Sub 15 pin

    • Resolution

  • Up to 1920 x 1200

    • Chipset

  • Aspeed AST2600

Chassis

    1U Rack

    Dimensions (D x W x H)

  • 27.56" x 17.26" x 3.42" (700 x 438.5 x 87mm)

Management

    AST2600 iKVM Feature

  • 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

    • AST2600 IPMI Feature

  • IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

Tyan Thunder SX TS70B7136 B7136T70V10E4HR-2T Server - Documentation
