Tyan Thunder SX TS70B7136 B7136T70V10E4HR Server

Suitable for big data or cloud storage applications, the Tyan Thunder SX TS70B7136 B7136T70V10E4HR server has two Intel Xeon Scalable processors from the 4th generation. Compatible CPUs support 8 to 60 cores with a TDP of 350W. There are 2x pre-installed riser cards and a total of 5x expansion slots, including 1x PCIe Gen.5 x4 slot, 2x Gen.5 x8 slots, and 2x Gen.5 x16 slots. Additionally, this platform includes 2x NVMe slots on the motherboard, which can accommodate M.2 2280 cards. 1x PCIe Gen5 x16 mezzanine slot can support an OCP 3.0 card for additional networking options. One GbE port specifically for IPMI is included on back of the B7136T70V10E4HR Server.
Configure

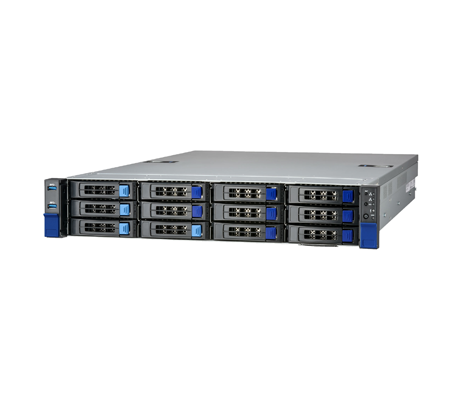

Tyan Thunder SX TS70B7136 B7136T70V10E4HR Server side view
Intel Partner Gold NVIDIA Elite Partner
Configure

Tyan Thunder SX TS70B7136 B7136T70V10E4HR Server - System Overview

Each processor has 8x memory module slots, for a total of 16x DIMMs across the system board. It can accommodate up to 2TB of memory with RDIMMs or 3DS RDIMMs operating at up to 4800MHz with all available slots filled with 128GB modules. There are a total of 12x 3.5-inch SATA drive bays in front with 2x 2.5-inch SATA drive bays in back. As an option, 4x of the front drive bays can accommodate NVMe U.2 drives. Two internal NVMe slots can be used for optional M.2 drives that can be used to boot the OS. Depending on how the system is oputfitted, there are two options for redundant power supply units, either 1000W or 1200W 80 Plus Platinum PSUs.

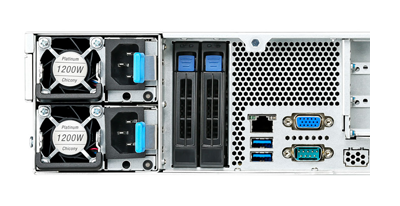

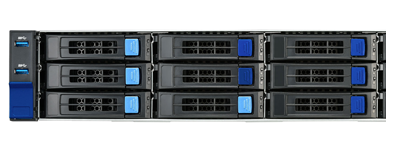

Tyan Thunder SX B7136T70V10E4HR server front view Tyan Thunder SX B7136T70V10E4HR server rear view

Tyan Thunder SX TS70B7136 B7136T70V10E4HR Server - Specifications

Processor - 2 Sockets

  • 4th Generation Intel Xeon Scalable Processor
  • Max up to 350W
  • (2) LGA4677

Chipset

    Intel C741

Memory

    Supported DIMMs

  • 16x DIMMs, 8-channels per CPU
  • RDIMM/3DS RDIMM

    • RDIMM/LRDIMM

  • Up to 2,048GB RDIMM/3DS RDIMM DDR5
  • Up to 4800/4400 MHz

Drive Bays

  • 2x 2.5" Hot-Swap HDD/SSDs (@ rear)
  • 12x 3.5"/2.5" Hot-Swap HDD/SSDs w/ 4x NVMe U.2
  • SAS 12Gb/s /SATA 6Gb/s /NVMe U.2

I/O Ports & Expansion Slots

    I/O Ports:

  • 2x USB 3.2 Gen1 ports (@ rear)
  • COM: 1x DB-9 COM port
  • VGA: 1x D-Sub 15-pin port
  • RJ-45: 1x dedicated GbE for IPMI

    • Expansion Slots

  • 1x PCIe Gen.5 x4 slot / 2x PCIe Gen.5 x8 slots / 2x PCIe Gen.5 x16 slots
  • Pre-Installed Riser: M7136T70-R24-2F riser card for for (1) FH/HL PCIe 5.0 x16 + (1) FH/HL PCIe 5.0 x8 slots
  • Pre-Installed Riser: M7136T70-L28-3F riser card for (1) FH/HL PCIe 5.0 x16 + (2) FH/HL PCIe 5.0 x8(1x w/ x4 link) slots
  • Others: 1x PCIe Gen.5 x16 OCP 3.0 mezzanine slot

LAN

    Quantity

  • 1x GbE dedicated for IPMI

    • PHY

  • Realtek RTL8211F

RAID Controller

    RAID 0/1/10/5 (Intel RSTe)

Power (1 + 1 Redundancy)

  • 1,000 Watts (100-127Vac input) / 1,200 Watts (200-240Vac input)
  • AC 100-127V/13A / AC 200-240V/7A

Graphics

    Connector Type

  • D-Sub 15 pin

    • Resolution

  • Up to 1920 x 1200

    • Chipset

  • Aspeed AST2600

Chassis

    1U Rack

    Dimensions (D x W x H)

  • 27.56" x 17.26" x 3.42" (700 x 438.5 x 87mm)

Management

    AST2600 iKVM Feature

  • 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

    • AST2600 IPMI Feature

  • IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

Tyan Thunder SX TS70B7136 B7136T70V10E4HR Server - Documentation

Tyan Thunder SX TS70B7136 B7136T70V10E4HR Data Sheet Tyan Thunder SX TS70B7136 B7136T70V10E4HR Service Engineer's Manual Tyan Thunder Intel Catalog Tyan AST2600 Configuration Guide
