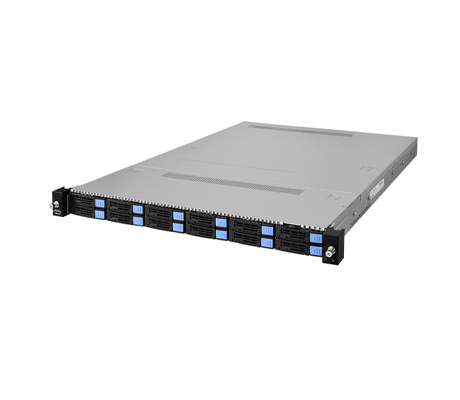

Tyan Transport CX GC68CB8056 B8056G68CE12HR-2T-TU Server

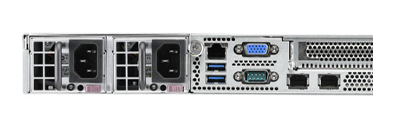

When all 24x DIMMs are filled, the 1U Tyan GC68CB8056 B8056G68CE12HR-2T-TU Cloud Server supports up to 6TB of DDR5 memory. Both RDIMMs and 3DS RDIMMs are compatible with the system and can run at maximum speeds of up to 5200MHz. The system offers 2x full-height, half-length PCIe Gen5 x16 slots via dual riser cards. For more networking capabilities, it includes a single PCIe Gen5 x16 OCP 3.0 mezzanine slot. Power is supplied by dual redundant 860W hot-swap 80 PLUS Titanium power supplies located at the rear panel.

The server is easy to manage with a built-in controller, the AST2600 Baseboard Management Controller (BMC) which is compatible with both IPMI 2.0 and Redfish standards. Using the dedicated RJ45 GbE port on the back of the system allows administrators to maintain the system remotely. Hardware status, temperature, and overall health can be controlled to help keep everything running smoothly and avoid downtime.
