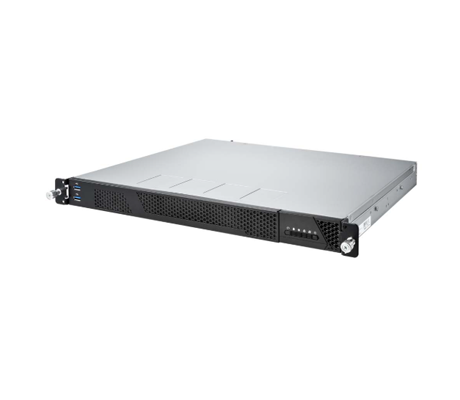

Processors supported on the Tyan Transport CX GX40B8016 B8016G40V4 Server are limited to a Thermal Design Power range of 105W. With 4x DDR5 DIMM slots compatible with unbuffered UDIMMs and non-ECC memory modules, memory speeds of up to 5200MHz are supported. At full capacity, it can support up to 192GB of UDIMM with 2-channel memory architecture enabling 2x DIMMs per channel (2DPC). There are 2x GbE LAN ports and a dedicated GbE LAN port for the Intelligent Platform Management Interface or IPMI.
4x front drive bays support 2x fixed 2.5-inch SATA drives and 2x 3.5-inch SATA drives with a 6Gb/s backplane. Inside the case, there are 2x PCIe 4.0 x4 slots to install one or two NVMe M.2 drives that can be used to boot the system, either with a single M.2 drive or with two in a mirror RAID for redundancy. A single PCIE Gen 5.0 x16 slot hosted in a pre-installed Tyan riser card provides options for additional network connectivity. The system offers energy efficiency with a 300W 80 PLUS Gold power supply unit (PSU). With that dedicated IPMI LAN port on the back of the system, administrators can access the system remotely.
