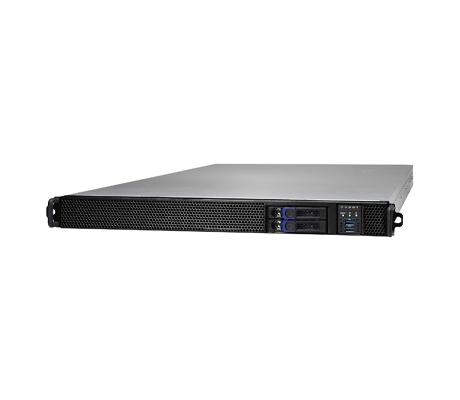

The Tyan Transport HX GA88B8021 B8021G88V2HR-2T-RM-N server is a single-socket platform that is designed for artificial intelligence, machine learning, and high-performance computing. As a 1U chassis with a single AMD EPYC processor from the 7001 or 7002 series, this system can also support several graphics processing units.
The Tyan Transport HX GA88B8021 B8021G88V2HR-2T-RM-N server leverages advanced technology from AMD with a single EPYC CPU for exceptional performance in a 1U chassis. The system also supports two 2.5-inch SSD or HDD SATA drives, plus two M.2 slots for additional storage. At only 1U it’s an easy high-performance addition to an existing network.

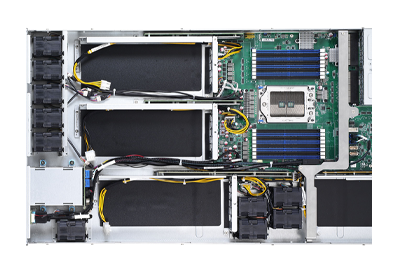

Other GA88B8021 Chassis ConfigurationsTen fans are scattered around the 1U Tyan B8021G88V2HR-2T-RM-N system to provide adequate airflow to the GPUs and other hardware components. 2x power supplies units offer redundancy with a Delta output that has a maximum output of 1600W and an 80 plus Platinum efficiency. A single AMD EPYC processor from the 7001 (Naples) or 7002 (Rome) series powers the system. AMD processors can meet the needs of businesses whether they’re dealing with enterprise applications, hyper-converged networks, or data analytic applications. With up to 32 cores and 64 threads, the CPU supports 16x memory module slots for a maximum capacity of up to 2TB of memory.
Outfitted with a single AMD EPYC processor, the Tyan GA88B8021 B8021G88V2HR-2T-RM-N supports 16x active memory module slots. It features 8x memory channels and supports DDR4 ECC registered (RDIMM), load-reduced (LRDIMM), and LRDIMM 3DS memory modules. RDIMMs support up to 2,048GB, LRDIMMs support up to 1,024GB, and LRDIMM 3DS supports up to 2,048GB of memory. Memory speeds range from 2400MHz to 2666MHz, but actual memory speed depends on memory population topology and the supported speed of the memory and CPU. All memory must be the same type and density, they cannot be mixed and matched.

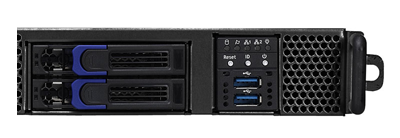

The system supports two 2.5-inch SATA drive bays on the front right side of the sleek chassis. These drive bays can be configured as hard disk drives or SSDs and are hot-swappable. The EPYC CPU enables the drives to have a SAS speed of 12Gb/s or SATA at 6Gb/s. The motherboard also supports two NVMe or SATA M.2 ports with a 22110-maximum length if additional storage is needed or to support an OS or hypervisor.
The system supports up to 6x single-wide GPUs or 4x double-wide GPUs scattered throughout the chassis. As stated in the previous section, the Transport HX GA88B8021 B8021G88V2HR-2T-RM-N server supports two NVMe or SATA M.2 slots for additional storage. This system also supports 2x GbE LAN ports and a dedicated management port.
The rear of the chassis has thermal holes on the left and redundant power supplies on the right. In the middle, there are three LAN ports, one specifically dedicated to IPMI 2.0. The server features AST2500 base management controller (BMC) with Redfish support to manage the system’s processor, memory, fans, and power supplies at-chassis or remotely.
The Tyan Transport HX GA88B8021 B8021G88V2HR-2T-RM-N server supports up to 6x single-wide GPUs or 4x double-wide GPUs for high-performance computing applications. The chassis features a single AMD EPYC CPU, 16x memory slots for up to 2TB of memory, and two drive bays. This is a great addition to any network or data center where additional compute is required.
*Actual memory speed depends on memory population topology
*Delta and Chicony are not interchangeable parts. Please use the required power supply module as indicated in the user's manual.
EfficiencyIf you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
