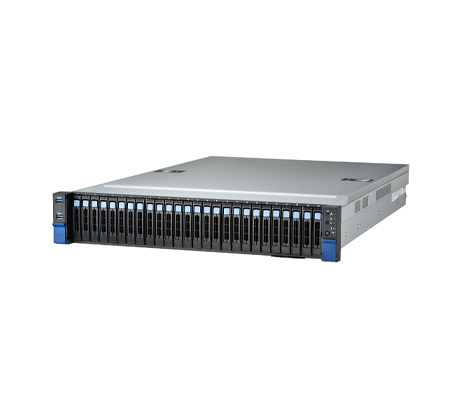

Tyan Transport SX TS70AB8056 B8056T70AE26HR-2T-HE Storage Server - System Overview

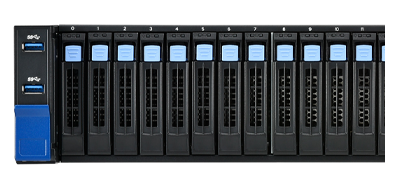

Offering 12x memory channels per CPU, the AMD-based server supports a total of 24x DIMM slots, allowing for up to 3TB of DDR5 memory. It supports both standard RDIMMs and 3DS RDIMMs, achieving speeds of up to 4800MHz to meet the demands of high-performance applications. Memory speed is reduced to 3600MHz when two memory modules per memory channel are installed. There is 1x PCIe Gen5 x16 OCP 3.0 mezzanine slot. One riser card accommodates a single full-height, half-length PCIe 5.0 x8 slot and the other supports 2x full-height, half-length PCIe 5.0 x16 slots, which are outfitted with two storage mezzanine cards for up front drive support. Additionally, the platform delivers dual M.2 PCIe Gen4 cards in a single latch, compatible with 22110 or 2280 form factor cards.

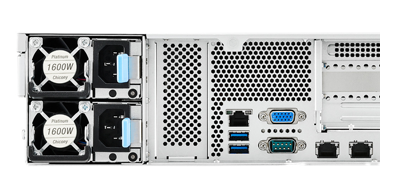

Powered by 1600W 80 plus Titanium power supplies, the Transport SX B8056T70AE26HR-2T-HE can be locally or remotely managed. Users can utilize the 2x 10GbE ports and 1x dedicated GbE port located at the rear to deploy the IPMI baseboard management controller, enabled by the onboard Aspeed AST2600. With its 2U form factor and hybrid capabilities, the Tyan Transport SX B8056T70AE26HR-2T-HE is a viable option for organizations looking to optimize their storage infrastructure.
