Tyan Transport SX TS70AB8056 B8056T70AE26HR Storage Server

The Tyan Transport SX TS70AB8056 B8056T70AE26HR storage server supports a single AMD EPYC 9004 series processor with up to 96 cores and a TDP of up to 400W. This machine also has 24x memory module slots with 26x 2.5" NVMe hot-swap drive bays up front. For more storage or to boot the operating system, there are 2x NVMe M.2 PCIe 4.0 x2 slots with support for 22110 or 2280 card form factors. Additionally, the system supports DDR5 memory with a maximum capacity of up to 3TB and a maximum speed of 4800MHz.
Configure

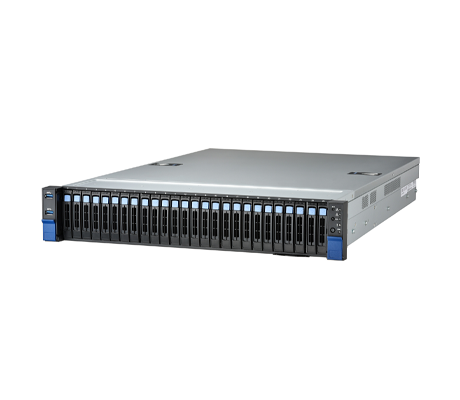

Tyan Transport SX TS70AB8056 B8056T70AE26HR Server side view
AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Tyan Transport SX TS70AB8056 B8056T70AE26HR Storage Server - System Overview

Two pre-installed riser cards with support for PCIe Gen5 are provided on the single-socket, 2U Tyan Transport SX TS70AB8056 B8056T70AE26HR storage server. One supports two full-height, half-length PCIe 5.0 x16 slots, while the second riser supports a single full-height, half-length PCIe 5.0 x8 slot. A PCIe Gen5 x16 OCP 3.0 mezzanine card slot provides extra options for advanced network connections and ports. A redundant 80 plus Platinum 1000W or 1600W PSU powers the system.

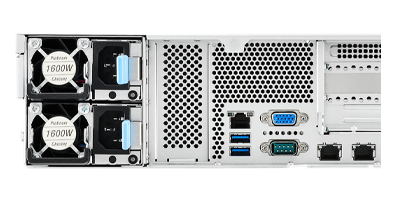

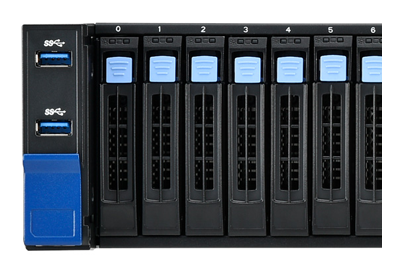

Tyan Transport SX B8056T70AE26HR server front view Tyan Transport SX B8056T70AE26HR server rear view

Tyan Transport SX TS70AB8056 B8056T70AE26HR Storage Server - Specifications

Processor - 1 Socket

  • AMD EPYC 9004 Series Processor
  • Up to 96 cores/192 threads
  • Max up to 400W
  • AMD Socket SP5

Chipset

    System on Chip

Memory

  • 24x DDR5 DIMMs, 12-channels per CPU
  • Up to 3,072GB RDIMM/3DS RDIMM DDR5 4800/4400/4000 memory

Drive Bays

  • Front: 26x 2.5" Hot-Swap NVMe U.2

I/O Ports & Expansion Slots

    I/O Ports:

  • 1x USB3.2 Gen.1 conn. (Type-A)
  • 1x USB3.2 Gen.1 header
  • 2x USB3.2 Gen.1 ports (@ front)
  • 2x USB3.2 Gen.1 ports (@ rear)
  • COM: 1x DB-9 COM port
  • VGA: 1x D-Sub 15-pin port
  • RJ-45: 1x GbE port dedicated for IPMI

    • Expansion Slots

  • 1x PCI-E Gen.5 x8 slot
  • Pre-Installed Riser: M7136T70-R24-2F riser card for for (2) FH/HL PCIe 5.0 x16 slots
  • Pre-Installed Riser: M7136T70-L28-1F riser card for for (1) FH/HL PCIe 5.0 x8 slot
  • Others: 1x PCIe Gen.5 x16 OCP 3.0 mezzanine slot

LAN

    Quantity

  • 1x PCI-E Gen.5 x16 OCP 3.0 mezzanine slot

    • PHY

  • Realtek RTL8211F

Power (1 + 1 Redundancy)

  • 1,000 Watts (100-127Vac input) / 1,600 Watts (200-240Vac input)
  • AC 100-127V/13A / AC 200-240V/9.5A

Graphics

    Connector Type

  • D-Sub 15 pin

    • Resolution

  • Up to 1920 x 1200

    • Chipset

  • Aspeed AST2600

Chassis

    1U Rack

    Dimensions (D x W x H)

  • 27.56" x 17.26" x 3.42" (700 x 438.5 x 87mm)

Management

    AST2600 iKVM Feature

  • 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

    • AST2600 IPMI Feature

  • IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

Tyan Transport SX TS70AB8056 B8056T70AE26HR Storage Server - Documentation

Tyan Transport SX TS70AB8056 B8056T70AE26HR Data Sheet Tyan Transport SX TS70AB8056 B8056T70AE26HR Service Engineer's Manual
