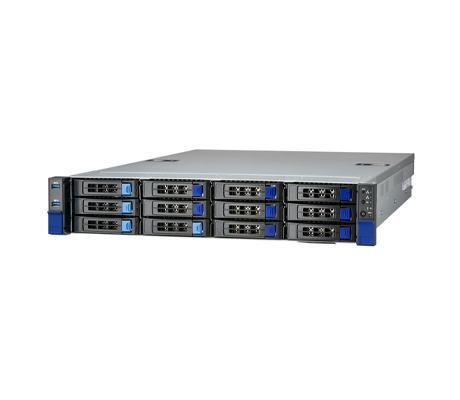

Tyan Transport SX TS70B8056 B8056T70V8E6HR-HE Server

The Tyan Transport SX TS70B8056 B8056T70V8E6HR-HE Server is a 2U single-socket storage system designed for data applications, offering hybrid NVMe, SAS, and SATA drive bay configurations. The front of the chassis features a total of 12x hot-swap 3.5" SATA 6G trays, with 4x supporting NVMe U.2 configurations. The rear panel offers 2x hot-swap NVMe U.2 trays. Additionally, there are 2x NVMe M.2 slots on the motherboard for 22110 or 2280 form factor cards. This server supports AMD EPYC 9004 and 9005 series processors with a maximum TDP of 400W and up to 160 cores.

Overview

Tyan Transport SX TS70B8056 B8056T70V8E6HR-HE Server - System Overview

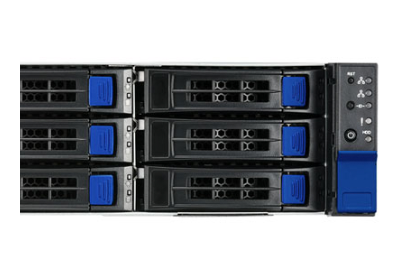

Tyan Transport SX TS70B8056 B8056T70V8E6HR-HE Server front

The Tyan TS70B8056 B8056T70V8E6HR-HE features a 12-channel memory architecture supporting up to 6TB of memory across 24x DDR5 memory module slots. It accommodates both RDIMMs or 3DS RDIMMs operating at speeds up to 4800MHz. The platform includes 3x PCIe slots via 2x pre-installed riser cards including 1x M7136T70-R24-2F riser card for 2x FH/HL PCIe 5.0 x16 slots and 1x M7136T70-L28-1F riser card for 1x FH/HL PCIe 5.0 x8 slot. For expanded networking capabilities, a single PCIe 5.0 x16 OCP 3.0 mezzanine slot is accessible through the rear of the chassis.

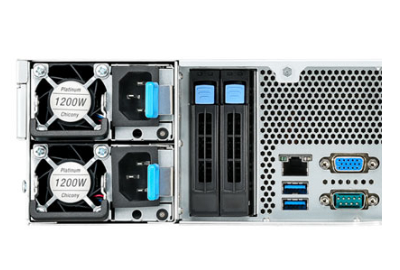

Tyan Transport SX TS70B8056 B8056T70V8E6HR-HE Server rear

Power efficiency is ensured by a redundant 1300W hot-swap 80 PLUS Titanium-certified power supply. System management is streamlined with the integrated AST2600 BMC, supporting IPMI 2.0 and Redfish, enabling comprehensive remote monitoring of hardware status, thermal performance, and system health to maintain optimal uptime and efficiency.

Specifications

Tyan Transport SX TS70B8056 B8056T70V8E6HR-HE Server - Specifications

Processor - 1 Socket

1x AMD EPYC 9004
TDP up to 400W

Socket:

1x AMD Socket SP5

Motherboard

S8056GME

Memory

24x DDR5 DIMM slots
12-channel memory architecture

Memory Type/Speed

RDIMM / RDIMM-3DS DDR5 4000 MHz (2DPC)

Capacity

Up to 6,144GB RDIMM/3DS RDIMM DDR5 4800/4400/4000memory

Storage

2x 2.5" Hot-Swap NVMe HDD/SSDs / 12x 3.5"/2.5" Hot-Swap HDD/SSDs w/ 4x NVMe

LAN

1x GbE dedicated for IPMI
Realtek RTL8211F

Input / Output

USB: 1x USB3.2 Gen.1 conn. (Type-A) / 1x USB3.2 Gen.1 header / 2x USB3.2 Gen.1 ports (@ front) / 2x USB3.2 Gen.1 ports (@ rear)
COM: 1x DB-9 COM port
VGA: 1x D-Sub 15-pin port
RJ45: 1x GbE port dedicated for IPMI
Button: ID Button/ Power Button / Reset Button

Expansion Slots

1x PCIe Gen 5 x8 slot / 2x PCIe Gen 5 x16 slots
Pre-Installed Riser Card: 1x M7136T70-R24-2F riser card for 2x FH/HL PCIe 5.0 x16 slots / 1x M7136T70-L28-1F riser card for 1x FH/HL PCIe 5.0 x8 slot

Chassis

Height: 87mm (3.43")

Width: 438.5mm (17.26")

Depth: 700mm (27.56")

Power Supply

1300W hot-swap 80 plus Titanium PSU

System Fans

3x redundant hot-swap 8056 fans

System Management

Aspeed AST2600 management controller
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

Documentation

Tyan Transport SX TS70B8056 B8056T70V8E6HR-HE Server - Documentation

Tyan Transport SX TS70B8056 B8056T70V8E6HR-HE Server Data Sheet Tyan Transport SX TS70B8056 B8056T70V8E6HR-HE Server User Manual Tyan Transport SX TS70B8056 B8056T70V8E6HR-HE Server FRU Parts Table Tyan AST2600 iBMC Configuration Guide Tyan Redfish Reference Guide
