Tyan TS70AB8056 B8056T70AE26HR-2T-2HE-TU Storage Server

The Tyan TS70AB8056 B8056T70AE26HR-2T-2HE-TU Storage Server is a 2U single-socket system designed for high IOPS (Input/Output Operations Per Second). It supports 26x 2.5” NVMe U.2 hot-swap drive bays on the front panel, making it well-suited for a wide range of storage-intensive applications.

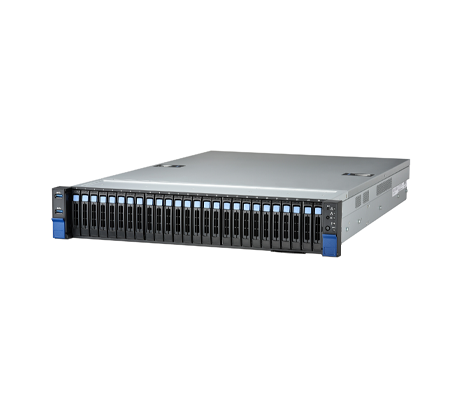

Tyan TS70AB8056 B8056T70AE26HR-2T-2HE-TU Storage Server side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Tyan TS70AB8056 B8056T70AE26HR-2T-2HE-TU Storage Server - System Overview

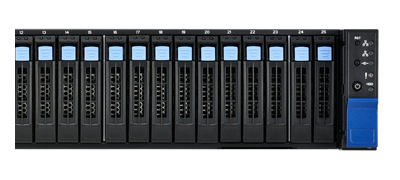

Tyan TS70AB8056 B8056T70AE26HR-2T-2HE-TU Storage Server front view

Powered by 1x AMD EPYC 9005 or 9004 series processor with a maximum TDP of 400W, the Tyan B8056T70AE26HR-2T-2HE-TU Storage Server delivers up to 6TB of memory via 12-channel memory architecture per CPU when all 24x memory module slots are occupied. Depending on the installed CPU series and memory configuration, memory speeds can range from 3600MT/s to 5200MT/s.

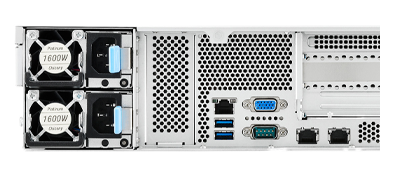

Tyan TS70AB8056 B8056T70AE26HR-2T-2HE-TU Storage Server rear view

There are 2x M.2 NVMe PCIe 4.0 x2 slots for 22110 or 2280 cards that can be used for more storage or to boot the operating system. The system also offers a pre-installed riser card for 1x PCIe Gen5 x8 slot, and 1x PCIe Gen5 x16 OCP 3.0 mezzanine slot. To power the system, there are dual redundant 1+1 1600W 80 Plus Titanium level PSUs. Administrators can access the integrated Intelligent Platform Management Interface (IPMI) to remotely manage and control the machine. This method can monitor thermal conditions and hardware health to keep the system running efficiently.

Tyan TS70AB8056 B8056T70AE26HR-2T-2HE-TU Storage Server - Specifications

Processor - 1 Socket

  • 1x AMD EPYC 9005 or 9004 Series Processor
  • 1x AMD Socket SP5
  • Max TDP 400W
  • Chipset: Aspeed AST2600

Memory

  • 24x DDR5 DIMM slots

    • AMD EPYC 9005

  • RDIMM: Up to 5200 MT/s (1DPC) RDIMM: Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC)

    • AMD EPYC 9004

  • RDIMM: Up to 4800 MT/s1DPC), 3600 MT/s (2DPC)
  • Up to 6,144GB RDIMM/3DS RDIMM DDR5 5200 memory
  • 12 Channels per CPU

Drive Bays

  • 26x 2.5" Hot-Swap NVMe U.2

I/O Ports

  • 1x USB3.2 Gen.1 conn. (Type-A) / 1x USB3.2 Gen.1 header / 2x USB3.2 Gen.1 ports (@ front) / 2x USB3.2 Gen.1 ports (@ rear)
  • 1x DB-9 COM port
  • 1x D-Sub 15-pin port
  • 2x 10 GbE ports + 1x dedicated GbE for IPMI

Expansion Slots

  • 1x PCIe Gen.5 x8 slot
  • Pre-installed Riser Cards: 1x M7136T70-R24-2F / 1x M7136T70-L28-1F
  • Others: 1x PCIe Gen 5 x16 OCP 3.0 mezzanine slot

LAN

    Quantity

  • 2x 10GbE ports + 1x GbE dedicated for IPMI

    • Controller

  • Intel X710-AT2

    • PHY

  • Realtek RTL8211F

Power (1 + 1 Redundancy)

  • 1600W 80 Plus Titanium
  • AC 100-127V/12A / AC 200-240V/10A

Graphics

    Connector Type

  • D-Sub 15-pin

    • Resolution

  • Up to 1920 x 1200

    • Chipset

  • Aspeed AST2600

Chassis

    2U Rackmount

    Dimensions (D x W x H)

  • 27.56" x 17.26" x 3.42" (700 x 438.5 x 87mm)

Management

    Onboard Chipset

  • Onboard Aspeed AST2600

    • AST2600 iKVM Feature

  • 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

    • AST2600 IPMI Feature

  • IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
