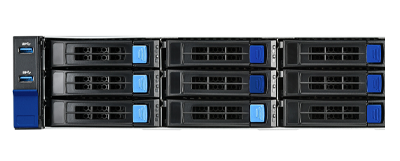

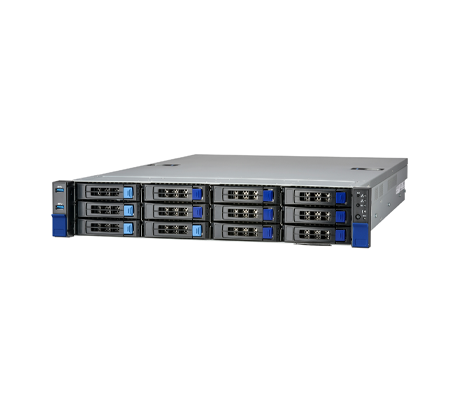

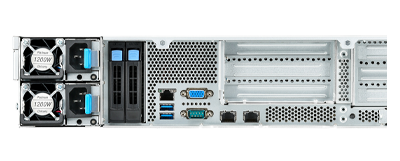

The 2U Tyan TS70B8056 B8056T70V8E6HR-2T-HE-TU storage appliance offers 12x drive bays on the front panel, and 2x additional storage bays on the rear. The front bays accommodate 8x 3.5” SATA 6G hot-swap drives plus up to 4x NVMe U.2 drives. The rear supports 2x 2.5” NVMe U.2 drive bays. For additional high-speed storage, there are 2x NVMe M.2 slots on the motherboard for 22110 or 2280 slots. This machine is powered by dual redundant 1300W power supplies with 80 Plus Titanium level efficiency.
There are 24x DDR5 memory module slots supported by 12-channel memory architecture, per CPU, for 2 DIMMs per Channel. At capacity, the server can be outfitted with up to 6TB of memory using 3DS RDIMMs. Depending on the CPU installed, memory speeds can reach 5200 MT/s. The Tyan B8056T70V8E6HR-2T-HE-TU has 2x riser cards, one for 2x FH/HL PCIe 5.0 x16 slots and another offering 1x FH/HL PCIe 5.0 x8 slot. The system also supports 1x PCIe Gen 5 x16 OCP 3.0 mezzanine card slot. For network connectivity, the system features dual 10GbE-T LAN ports and a dedicated GbE IPMI management port offering both remote and at-chassis controls via the Aspeed AST2600 chipset.
AMD EPYC 9005
AMD EPYC 9004
Front Drive Bay Interface
Front Drive Backplane Support
Rear Drive Bay Interface
Rear Drive Backplane Support
Quantity
Controller
PHY
Connector Type
Resolution
Chipset
2U Rackmount
Dimensions (D x W x H)
Onboard Chipset
AST2600 iKVM Feature
AST2600 IPMI Feature
