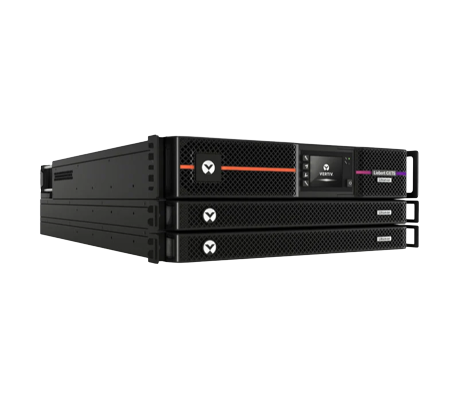

Additional InformationThere are a range of appliances within the Vertiv Liebert GXT5 Lithium-Ion UPS, 5,000-10,000VA family including 5000W, 6000W, 8000W, and 1000W for options when considering the best runtime and power. Online double conversion topology isolates connected hardware from utility disturbances, while providing surge protection and voltage frequency regulation. The Vertiv Liebert GXT5 Lithium-ion uninterruptible power supply automatically switches to battery backup power when a power loss is detected. A color gravity-sensing LCD display automatically reorients itself based on the orientation of the unit.
Power to connected equipment is also maintained if the UPS needs to be serviced or removed thanks to Vertiv’s Zero-U maintenance bypass, which is only available for the 5-10kVA models. Vertiv also offers several power distribution units (PDUs), as well as optional external battery cabinets, which are all fully compatible. It’s also ideal for edge or distributed networks offering a set-it and forget-it solution with low maintenance requirements.
| Model | Form Factor | Rating | Unit Dimensions, in (mm) W x D x H | Unit Weight, lbs (kg) with EBCs | Unit Weight, lbs (kg) without EBCs |
|---|---|---|---|---|---|
| GXT5LI-5000MVRT3UXLN | 3U Rack/Tower | 5000VA/5000W | 16.9 x 30 x 3.3 in (2U) (430 x 865 x 85 mm) | 104.9 lbs (47.6 kg) | 56.4 lbs (25.6 kg) |
| GXT5LI-6000MVRT3UXLN | 3U Rack/Tower | 6000VA/6000W | 16.9 x 35.4 x 3.3 in (2U) (430 x 900 x 85 mm) | 100 lbs (45.4 kg) | 51.5 lbs (23.4 kg) |
| GXT5LI-8000MVRT4UXLN | 4U Rack/Tower | 8000VA/8000W | 16.9 x 36.6 x 3.3 in (2U) (430 x 930 x 85 mm) | 156.3 lbs (70.9 kg) | 59.3 lbs (26.9 kg) |
| GXT5LI-10KMVRT4UXLN | 4U Rack/Tower | 10,000VA/10,000W | 16.9 x 36.6 x 3.3 in (2U) (430 x 930 x 85 mm) | 156.3 lbs (70.9 kg) | 59.3 lbs (26.9 kg) |
