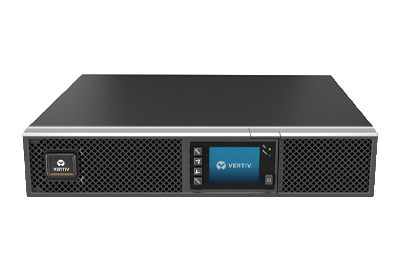

Additional InformationThe Vertiv Liebert GXT5 UPS delivers a comprehensive range of single-phase solutions designed for flexibility and ease of use. Its convertible rack/tower form factor simplifies deployment, while a gravity-sensing, full-color LCD provides an intuitive interface for local setup and management. Installation is further streamlined with automatic detection of external battery cabinets for extended runtime.
With an optional network interface card (NIC), users can leverage Vertiv’s management ecosystem including, Trellis Power Insight and Vertiv LIFE Services. Both offer enhanced monitoring and remote support of critical infrastructure. Engineered for high availability and performance, these UPS systems offer output power factors up to unity, maximizing usable power in a compact footprint. Energy Star 2.0 certification and Active ECO mode ensure efficient operation, delivering reliable protection while reducing energy consumption.
| Model | Ratings (VA / W) | Unit Dimensions, in (mm) W x D x H | Unit Weight, lbs (kg) |
|---|---|---|---|
| GXT5-500LVRT2UXL | 500VA/500W | 16.9 x 15.7 x 3.4 in (430 x 400 x 85 mm) | 37 lbs (16.8kg) |
| GXT5-500LVRT2UXLN | 500VA/500W | 16.9 x 15.7 x 3.4 in (430 x 400 x 85 mm) | 37 lbs (16.8kg) |
| GXT5-750LVRT2UXL | 750VA/750W | 16.9 x 15.7 x 3.4 in (430 x 400 x 85 mm) | 37 lbs (16.8kg) |
| GXT5-750LVRT2UXLN | 750VA/750W | 16.9 x 15.7 x 3.4 in (430 x 400 x 85 mm) | 37 lbs (16.8kg) |
| GXT5-1000LVRT2UXL | 1000VA/1000W | 16.9 x 15.7 x 3.4 in (430 x 400 x 85 mm) | 37 lbs (16.8kg) |
| GXT5-1000LVRT2UXLN | 1000VA/1000W | 16.9 x 15.7 x 3.4 in (430 x 400 x 85 mm) | 37 lbs (16.8kg) |
| GXT5-1500LVRT2UXL | 1500VA/1350W | 16.9 x 18.5 x 3.4 in (430 x 470 x 85 mm) | 46.2 lbs (21kg) |
| GXT5-1500LVRT2UXLN | 1500VA/1350W | 16.9 x 18.5 x 3.4 in (430 x 470 x 85 mm) | 46.2 lbs (21kg) |
| GXT5-2000LVRT2UXL | 2000VA/1800W | 16.9 x 18.5 x 3.4 in (430 x 470 x 85 mm) | 47.5lbs (21.6 kg) |
| GXT5-2000LVRT2UXLN | 2000VA/1800W | 16.9 x 18.5 x 3.4 in (430 x 470 x 85 mm) | 47.5lbs (21.6 kg) |
| GXT5-3000LVRT2UXL | 3000VA/2700W | 16.9 x 21.3 x 3.4 in (430 x 540 x 85mm) | 66 lbs (30 kg) |
| GXT5-3000LVRT2UXLN | 3000VA/2700W | 16.9 x 21.3 x 3.4 in (430 x 540 x 85mm) | 66 lbs (30 kg) |
